TN TFT Displays
Standard entry level colour TFT LCD displays are the first choice for engineers looking to step up their designs from graphic or segment mono displays.
Standard displays are easier to implement, making them more suitable when upgrading or as an entry point for implementing a display for the first time. These TFTs usually have industry standard interface requirements like SPI or RGB that can be provided quite easily with modern microcontrollers such as Cortex.
All of our TFTs can be customised and enhanced. This might include adding a more powerful backlight, improving contrast, or adding capacitive touchscreen to provide direct user interaction with your product removing the need for buttons or keyboard.
Adding a cover lens to a standard TFT with a touchscreen can give a sophisticated user interface that the smartphone generation expects of even the simplest devices, costs can be offset against greatly simplified manufacturing and no need for clean room final assembly. Cover lenses can be impact resistant up to 8 mm thick yet still support touch and even made in irregular shapes to fit in and around your existing hardware.
Get in touch today
This 1.77" TFT display is the smallest in our range of standard TFTs, with a resolution of 128 x 160 px.
- Resolution: 128 x 160
- Interface: 8080 Parallel
- Brightness: 220 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more

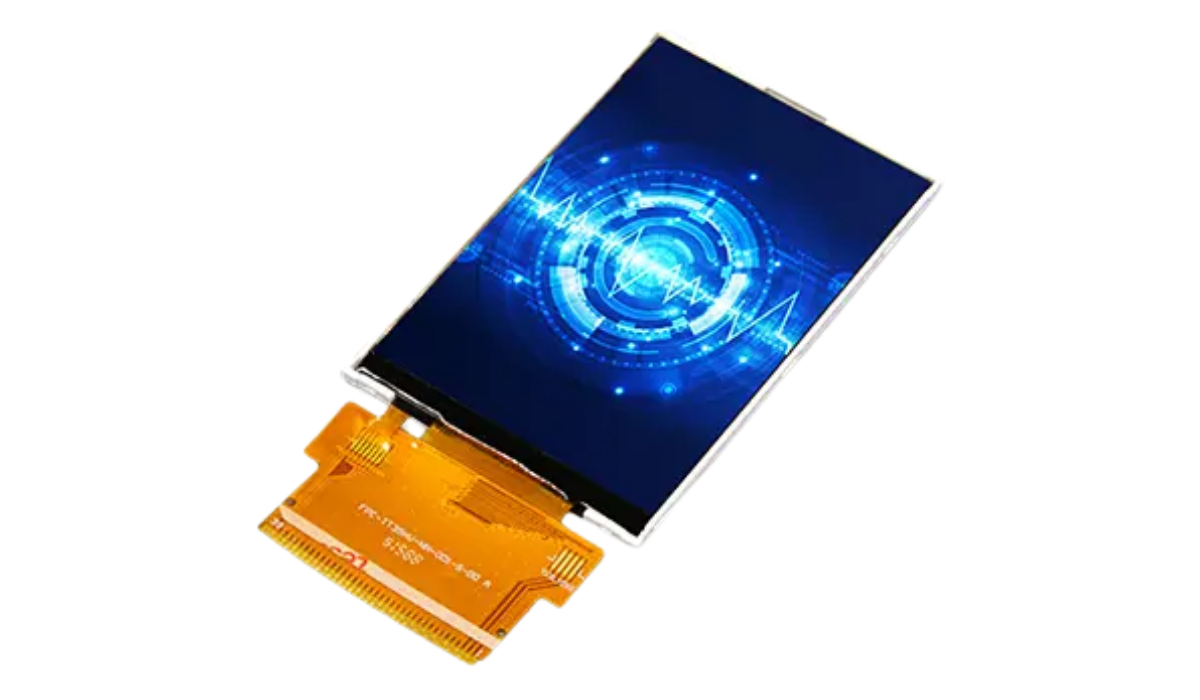

Compact and thin yet packing performance, this small 2.4" TFT display has an active area right up to the edges.
- Resolution: 240 x 320
- Interface: 8080 Parallel
- Brightness: 200 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This compact 2.8" colour TFT has a resolution of 240 x 320 px and 16bit parallel microcontroller interface.
- Resolution: 240 x 320
- Interface: 8080 Parallel
- Brightness: 240 cd/M²
- Contrast: 250:1
- Temperature: -20°C to 70°C
Find out more
This 2.9" IPS TFT is one of the smallest panels in our range of letterbox TFTs and features an aspect ratio of nearly 3:1.
- Resolution: 320 x 120
- Interface: RGB
- Brightness: 300 cd/M²
- Contrast: 300:1
- Temperature: -20°C to 70°C
Find out more
This 3.5" colour 320 x 240 px TFT display features slim bezels, making it ideal for compact and lightweight designs requiring a high resolution.
- Resolution: 320 x 240
- Interface: RGB
- Brightness: 275 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 3.5" TFT display is fitted with a 5-point capacitive touchscreen and a backlight that delivers an extended 50K hours half-life.
- Resolution: 320 x 240
- Interface: RGB
- Brightness: 350 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
Our 3.5" sunlight readable TFT is ideal for compact and mobile applications, and with exceptional brightness it's usable in the brightest environment.
- Resolution: 320 x 480
- Interface: MCU, RGB
- Brightness: 1,100 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 3.5" TFT is an HVGA panel, featuring half the native resolution of normal VGA
- Resolution: 320 x 480
- Interface: MCU
- Brightness: 220 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 3.5" TFT features an integrated graphics controllers on the FPC, so users can interface straight to the display with no additional graphical componentry.
- Resolution: 320 x 480
- Interface: Serial
- Brightness: 240 cd/M²
- Contrast: 500:1
- Temperature: -20°C to 70°C
Find out more
This 3.9" display is one of the smallest in our range of letterbox products and comes with an anti-glare coating as standard.
- Resolution: 480 x 128
- Interface: RGB
- Brightness: 600 cd/M²
- Contrast: 500:1
- Temperature: -20°C to 70°C
Find out more

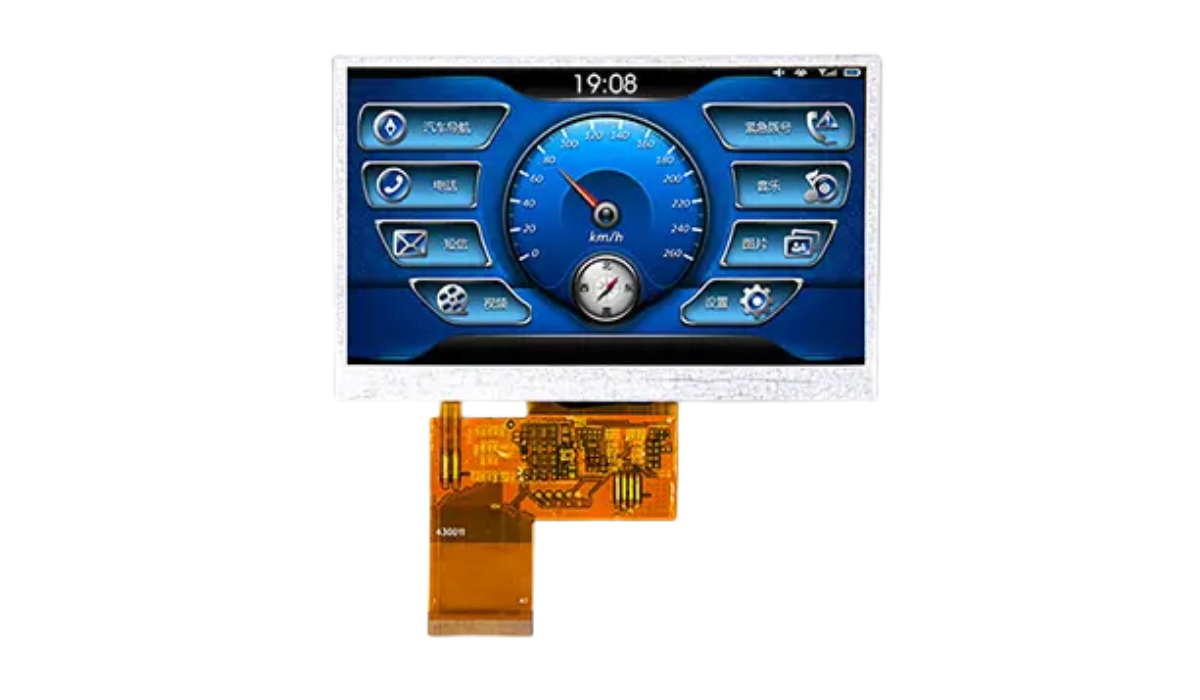

This 4.3" TFT display has a 480 x 272 px resolution and RGB interface for easy implementation, and is pre-treated with an anti-glare coating.
- Resolution: 480 x 272
- Interface: 16-bit Parallel
- Brightness: 450 cd/M²
- Contrast: 350:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 4.3" TFT display has a resolution of 480 x 272 px and is polarised for a 12 o'clock viewing angle. It also achieves an enhanced contrast ratio of 500:1.
- Resolution: 480 x 272
- Interface: RGB
- Brightness: 250 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 4.3" TFT display is fitted with a 5-point capacitive touchscreen and a backlight that delivers an extended 50K hours half-life.
- Resolution: 480 x 272
- Interface: RGB
- Brightness: 350 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This excellent 4.3" display has a 1,000 cd backlight, meaning it offers bright and vivid images in bright and directly lit environments.
- Resolution: 480 x 272
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 4.6" display is part of our range of letterbox products and comes with an anti-glare coating as standard.
- Resolution: 800 x 320
- Interface: RGB
- Brightness: 520 cd/M²
- Contrast: 500:1
- Temperature: -20°C to 70°C
Find out more
This 5" TFT display has 800 x 480 px resolution and high contrast ratio, and is easy to implement with its RGB interface.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 240 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 5" TFT features an excellent WVGA resolution, 5:3 aspect display, with a super bright 1,000 cd backlight that delivers a 50K hours half-life.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 5" transflective TFT is fitted with a backlight for use in darker areas but can act as a reflective panel in environments with high ambient light.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 40 cd/M²
- Contrast: 40:1
- Backlight: 30K Hours
- Temperature: -20°C to 70°C
Find out more
This 5.6" TFT display has a resolution of 640 x 480 px and RGB interface for easy implementation, making it easy to design-in to new products.
- Resolution: 640 x 480
- Interface: RGB
- Brightness: 200 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 5.8" ultra-wide TFT features a 24-bit RGB interface and an aspect ratio of 2.5, and is polarised for a 12 o'clock viewing angle.
- Resolution: 800 x 320
- Interface: RGB
- Brightness: 500 cd/M²
- Contrast: 600:1
- Backlight: 25K Hours
- Temperature: -30°C to 85°C
Find out more
This 7" TFT display has a resolution of 800 x 480 px and comes with an RGB interface; it is one of our more popular sizes for designers.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 270 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" TFT display is fitted with a 5-point capacitive touchscreen and has an extended backlight half-life of 50K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 350 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" WVGA resolution display features an 800 cd high power backlight that delivers an extended half-life of 50K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 800 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" TFT has an extended operating temperature range of -30°C to 85°C and features a high power backlight with an extended half-life of 30K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 700:1
- Backlight: 30K Hours
- Temperature: -30°C to 85°C
Find out more
This 7" TFT has a built-in MCU and offers a simple upgrade path from mono graphic displays to full colour TFTs.
- Resolution: 800 x 480
- Interface: MCU
- Brightness: 450 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 10.1" TFT display comes fitted with a 5-point capacitive touchscreen and features an RGB interface for easy implementation.
- Resolution: 1024 x 600
- Interface: RGB
- Brightness: 220 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more

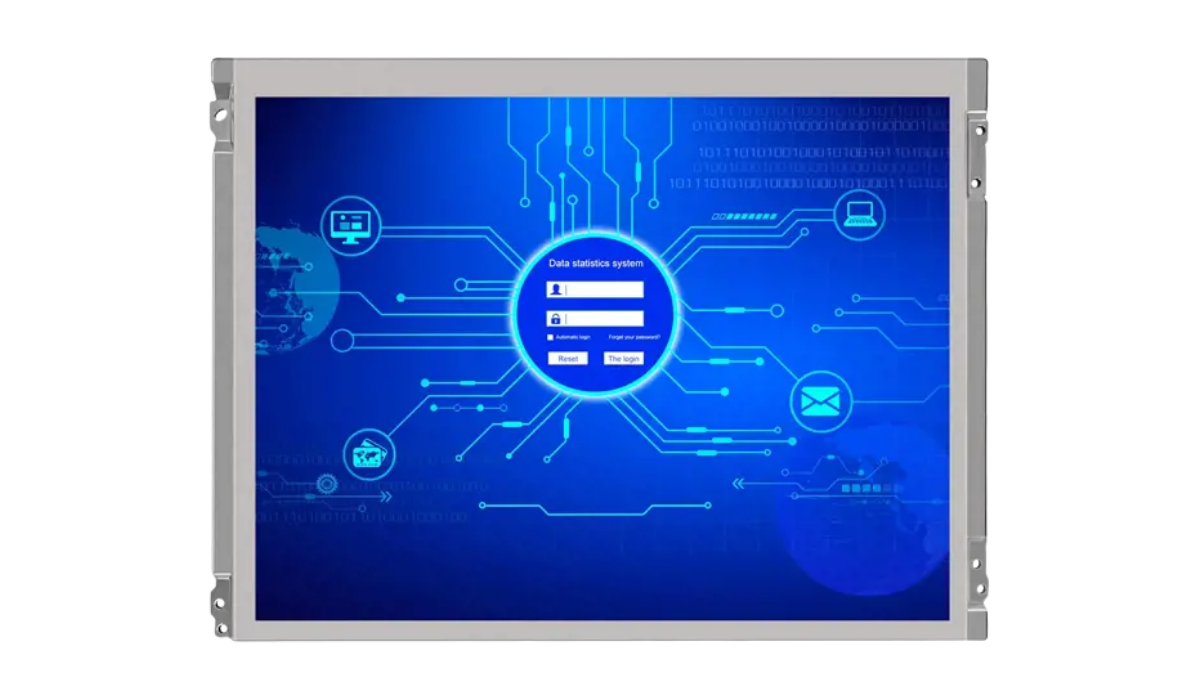

Our 10.4" industrial TFT is polarised for a 12 o'clock viewing angle and has an extended backlight half-life of 30K hours.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 500 cd/M²
- Contrast: 800:1
- Backlight: 30K Hours
- Temperature: -20°C to 70°C
Find out more
This 10.4" TFT display is fitted with an industrial backlight with a 50K hours half-life, and features an extended operating temperature range of -30°C to 85°C.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 400 cd/M²
- Contrast: 700:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more
This 11" display features our widest letterbox display aspect ratio at nearly 11:1, making it ideal for extremely low height designs.
- Resolution: 1280 x 120
- Interface: RGB
- Brightness: 750 cd/M²
- Contrast: 600:1
- Temperature: -10°C to 60°C
Find out more
Our 12.1" industrial TFT is polarised for a 12 o'clock viewing angle and has an extended backlight half-life of 50K hours.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 450 cd/M²
- Contrast: 800:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
Like our smaller industrial TFTs, this 15" display is polarised for a 12 o'clock viewing angle and has a basic LVDS interface.
- Resolution: 1024 x 768
- Interface: LVDS
- Brightness: 450 cd/M²
- Contrast: 700:1
- Backlight: 70K Hours
- Temperature: -30°C to 80°C
Find out more
