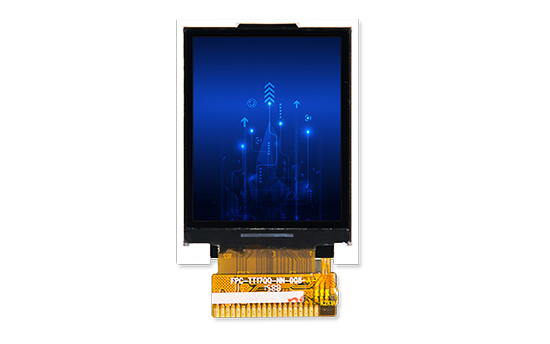

1.77" TFT Display (TFT-0101)
This 1.77" TFT display is the smallest in our range of standard TFTs, with a resolution of 128 x 160 px.
It has a thin bezel and low profile, making it ideal for entry-level, small-form products that require a colour display.
Display Features
- Size: < 5"
- Type: TN TFT
Display Specs
| Part Number | TFT-0101 |
| Display Type | TN TFT |
| Screen Size | 1.77" |
| Resolution | 128 x 160 |
| Shape | Standard |
| Aspect Ratio | 4:5 |
| Viewing Angle | 6 o'clock |
| Brightness | 220 cd/M² |
| Backlight Half-Life | 20K Hours |
| Contrast Ratio | 500:1 |
| Interface | 8080 Parallel |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 34 x 48.7 x 2.4 mm |
| Active Area (W x H) | 28 x 35 mm |
