Industrial Displays
Industrial TFT displays benefit from longer product availability as well as an extended backlight half-life of at least 30K hours, with some rated as high as 70K hours.
This allows them to be on nearly all the time, which is perfect for the manufacturing environments in which they are normally used, where they need to be robust and reliable, and tend to be panel or rack mounted in a fixed position.
Our range of sizes starts as small as 3.5" and goes through up to 15.6". This means we can support a number of different products and applications in the industrial sector that require an always-on display.
All of our industrial TFTs can be fully customised with capacitive touchscreens, a range of optical enhancements and custom cover lens to create a unique display for your application.

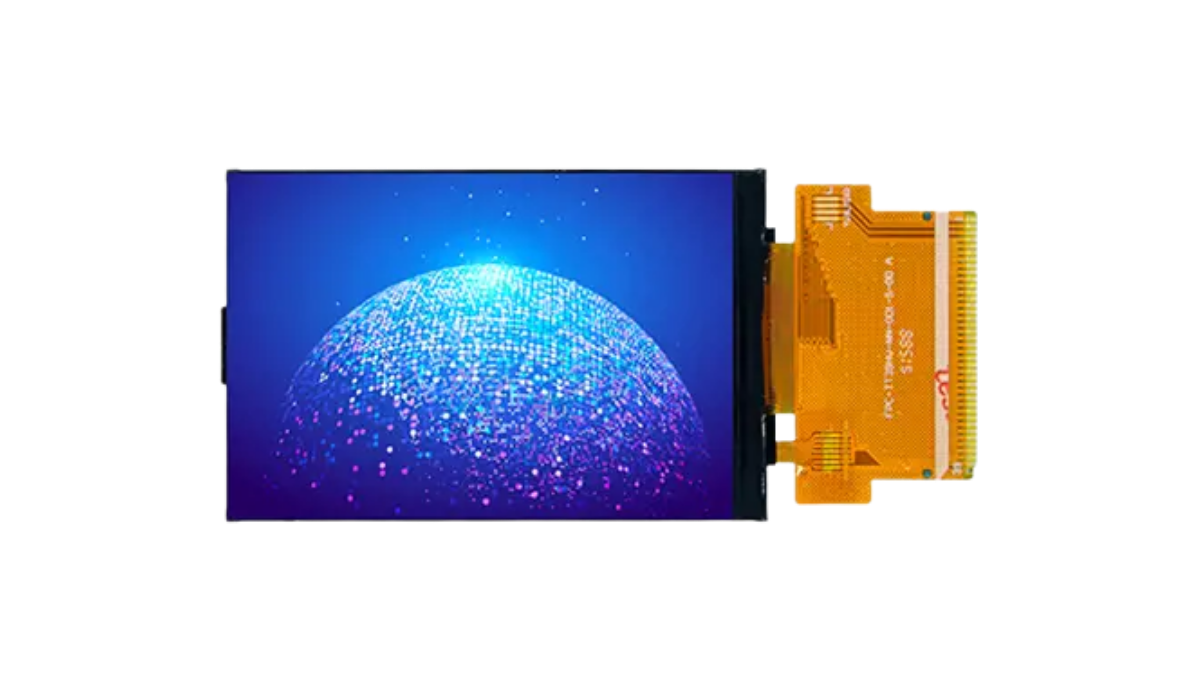

This 3.5" TFT display is fitted with a 5-point capacitive touchscreen and a backlight that delivers an extended 50K hours half-life.
- Resolution: 320 x 240
- Interface: RGB
- Brightness: 350 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more

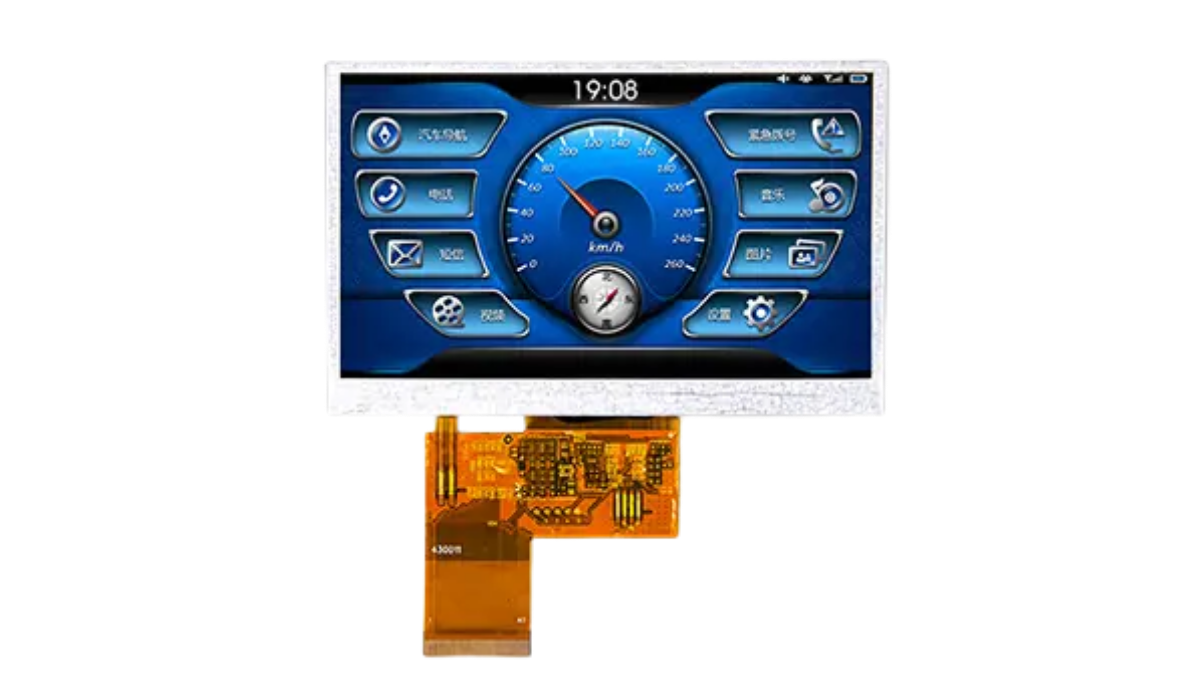

This 4.3" TFT display is fitted with a 5-point capacitive touchscreen and a backlight that delivers an extended 50K hours half-life.
- Resolution: 480 x 272
- Interface: RGB
- Brightness: 350 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 5" TFT features an excellent WVGA resolution, 5:3 aspect display, with a super bright 1,000 cd backlight that delivers a 50K hours half-life.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 6" letterbox IPS display has a high brightness rating and extended backlight half-life, wrapped up in 1:2 aspect ratio.
- Resolution: 1080 x 2160
- Interface: MIPI
- Brightness: 1,000 cd/M²
- Contrast: 1,200:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" TFT display is fitted with a 5-point capacitive touchscreen and has an extended backlight half-life of 50K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 350 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" WVGA resolution display features an 800 cd high power backlight that delivers an extended half-life of 50K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 800 cd/M²
- Contrast: 500:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" TFT has an extended operating temperature range of -30°C to 85°C and features a high power backlight with an extended half-life of 30K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 700:1
- Backlight: 30K Hours
- Temperature: -30°C to 85°C
Find out more
This 7" IPS display has a 1024 x 600 resolution coupled with a high contrast ratio, and features an LVDS interface for high-speed signal processing.
- Resolution: 1024 x 600
- Interface: LVDS
- Brightness: 800 cd/M²
- Contrast: 800:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
Our 10.1" integrated display solution combines an IPS TFT panel and an HDMI board to deliver a plug & play display paired with an industrial backlight.
- Resolution: 1280 x 800
- Interface: HDMI
- Brightness: 500 cd/M²
- Contrast: 800:1
- Backlight: 50K Hours
- Temperature: -10°C to 60°C
Find out more
This 10.1" IPS panel is perfect for a range of indoor and outdoor applications, with its industrial backlight and extended operating temperature range.
- Resolution: 1280 x 800
- Interface: LVDS
- Brightness: 1,000 cd/M²
- Contrast: 1,000:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more
This 10.25" letterbox TFT display features an HD resolution and an IPS panel, delivering all-round viewing angles, high contrast and excellent response times.
- Resolution: 1920 x 720
- Interface: LVDS
- Brightness: 600 cd/M²
- Contrast: 900:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more
Our 10.4" industrial TFT is polarised for a 12 o'clock viewing angle and has an extended backlight half-life of 30K hours.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 500 cd/M²
- Contrast: 800:1
- Backlight: 30K Hours
- Temperature: -20°C to 70°C
Find out more
This 10.4" TFT display is fitted with an industrial backlight with a 50K hours half-life, and features an extended operating temperature range of -30°C to 85°C.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 400 cd/M²
- Contrast: 700:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more
Our 12.1" industrial TFT is polarised for a 12 o'clock viewing angle and has an extended backlight half-life of 50K hours.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 450 cd/M²
- Contrast: 800:1
- Backlight: 50K Hours
- Temperature: -20°C to 70°C
Find out more
This 12.3" TFT display is the largest in our range of letterbox products and features a high resolution screen.
- Resolution: 1920 x 720
- Interface: LVDS
- Brightness: 1,000 cd/M²
- Contrast: 1,000:1
- Backlight: 70K Hours
- Temperature: -30°C to 85°C
Find out more
Like our smaller industrial TFTs, this 15" display is polarised for a 12 o'clock viewing angle and has a basic LVDS interface.
- Resolution: 1024 x 768
- Interface: LVDS
- Brightness: 450 cd/M²
- Contrast: 700:1
- Backlight: 70K Hours
- Temperature: -30°C to 80°C
Find out more
Our 15.6" industrial IPS display is one of the largest in our range to feature an extended backlight half-light of 50K hours.
- Resolution: 1920 x 1080
- Interface: eDP
- Brightness: 500 cd/M²
- Contrast: 1,000:1
- Backlight: 50K Hours
- Temperature: 0°C to 50°C
Find out more
