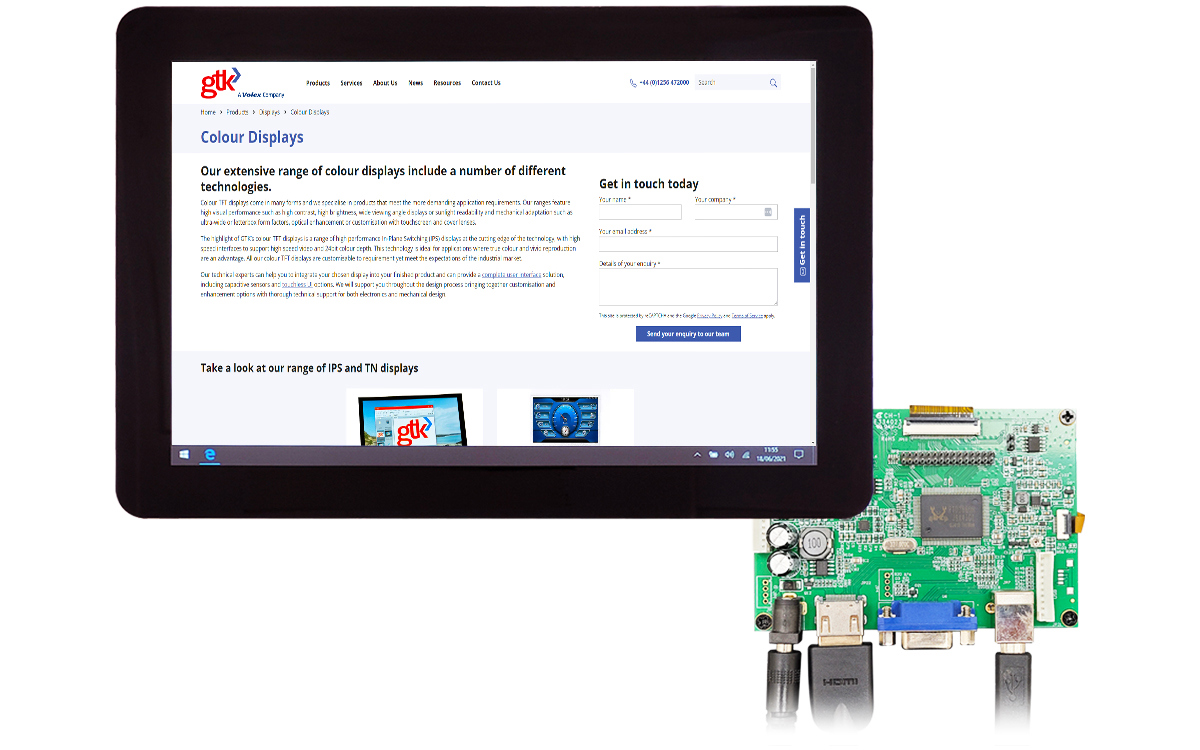

10.1" IPS TFT Display (IPS101A105R)
Our 10.1" integrated display solution combines an IPS TFT panel and an HDMI board.
This results in a plug & play display that only needs a video input to get running, which can be delivered via HDMI or VGA.
It is powered by a 12 V DC jack and there is a USB Type-B connector to drive the capacitive touchscreen, which supports multi-touch.
The display itself has free viewing angles, fast response times and a 16.7 million colour depth.
The whole package is supplied with an industrial backlight that delivers an extended half-like of 50K hours.
Display Features
- Size: > 10"
- Type: IPS TFT
- Feature: Industrial Backlight
- Feature: Integrated HDMI Board
Display Specs
| Part Number | IPS101A105R |
| Display Type | IPS TFT |
| Screen Size | 10.1" |
| Resolution | 1280 x 800 |
| Shape | Standard |
| Aspect Ratio | 8:5 |
| Viewing Angle | Free |
| Brightness | 500 cd/M² |
| Backlight Half-Life | 50K Hours |
| Contrast Ratio | 800:1 |
| Interface | HDMI |
| Connection | ZIF |
| Operating Temperature Range | -10°C to 60°C |
| Dimensions (W x H x D) | 255 x 172.6 x 29.2 mm |
| Active Area (W x H) | 217 x 135.6 mm |
