Integrated Display Solutions
Our integrated display modules form a range of products aimed at offering designers a fast, low-cost route to a high quality Human Machine Interface.
These modules are designed for simple integration and come with either 16-bit MCU boards or HDMI boards that only require a video-out connection from your system.
Our MCU interface displays offer an easy upgrade path for OEMs currently working with graphic mono displays, as these TFTs can be integrated without changing the original processor. For new designs, the MCU board simplifies the requirements of the main processor, which means shorter development time and a faster time to market.
For a straight plug-and-play HMI, our HDMI interface displays are fitted with a USB capacitive touch panel, immediately recognised by Windows and Linux operating systems, providing fast implementation and reliable long-term use. These displays don’t require additional engineering expertise and are ready to go out of the box.
Take a look at our range of options below or get in touch to discuss your requirements today.

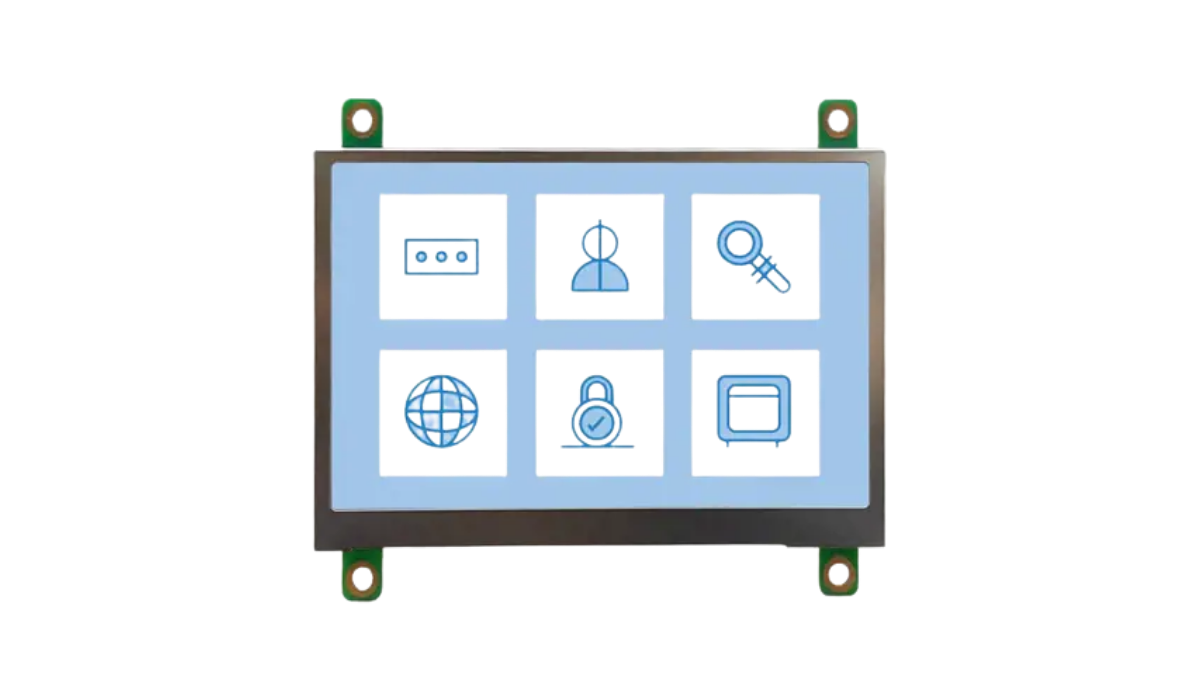

This 3.5" IPS TFT has a built-in MCU allowing for easy integration with the end-application PCB.
- Resolution: 320 x 240
- Interface: MCU
- Brightness: 500 cd/M²
- Contrast: 800:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more

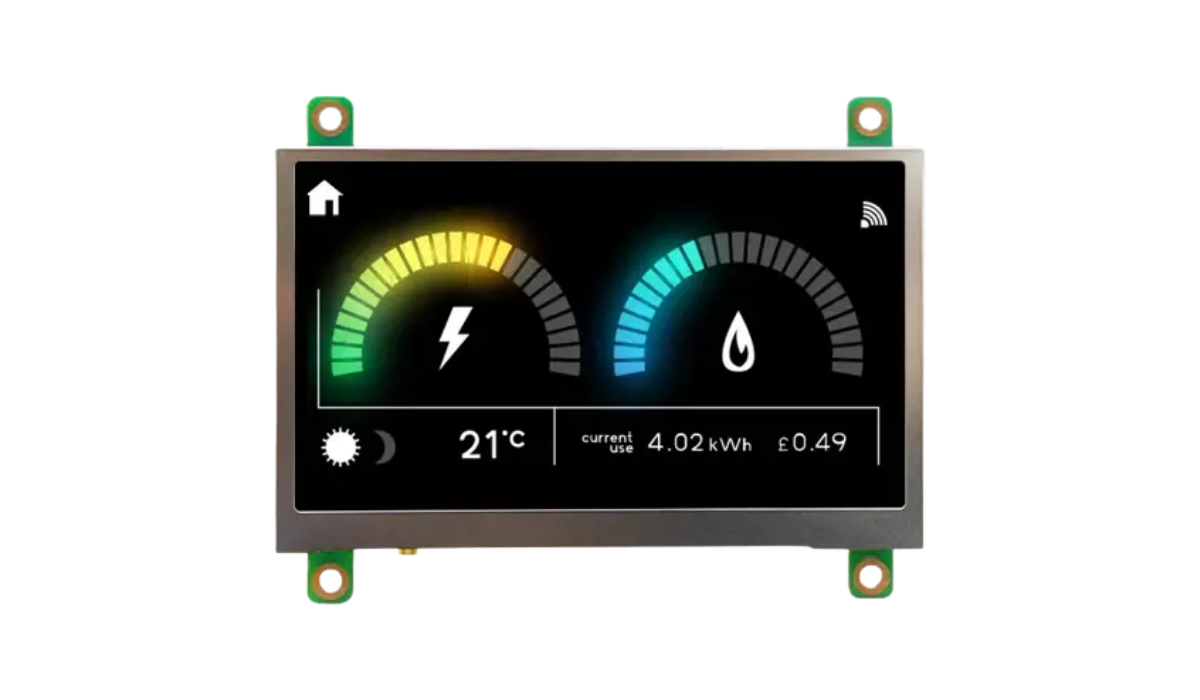

This 4.3" IPS TFT has a built-in MCU making it ideal for OEMs with limited in-house software engineering experience.
- Resolution: 480 x 272
- Interface: MCU
- Brightness: 250 cd/M²
- Contrast: 650:1
- Backlight: 30K Hours
- Temperature: -20°C to 70°C
Find out more

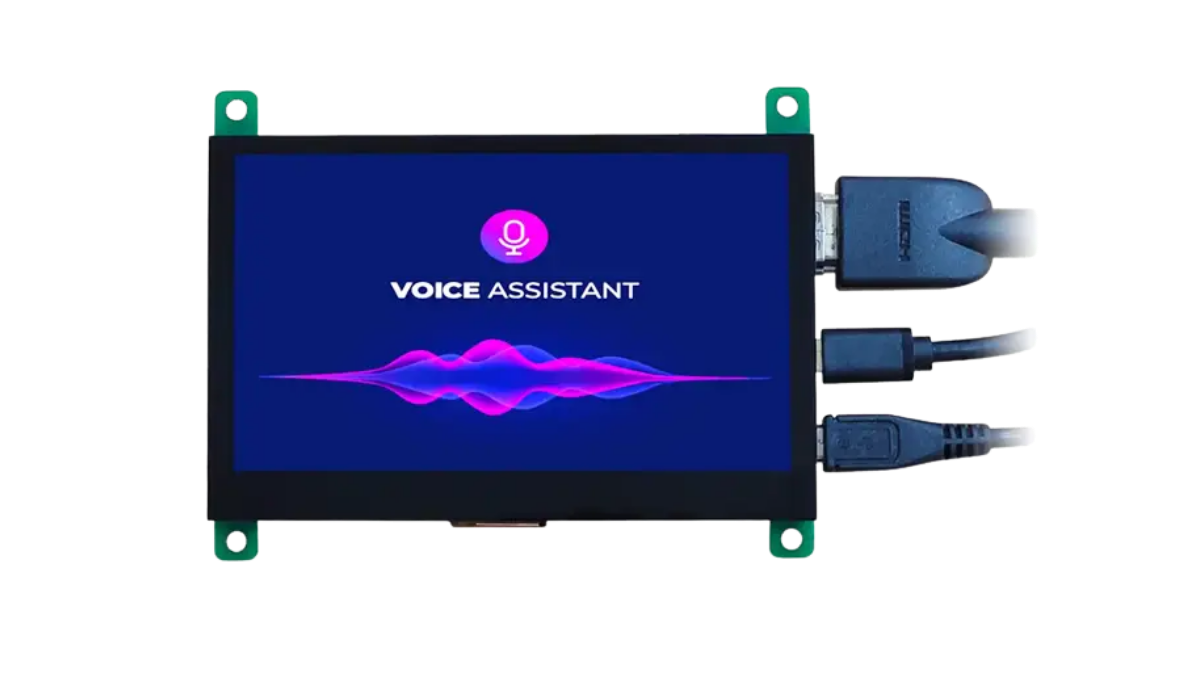

This 4.3" IPS TFT display is the smallest in our range of integrated display solutions to come with its own HDMI driver board.
- Resolution: 480 x 272
- Interface: HDMI
- Brightness: 250 cd/M²
- Contrast: 650:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 5" IPS panel is a fully integrated display solution that comes with its own HDMI board. This means that it just needs a video input to get up and running.
- Resolution: 800 x 480
- Interface: HDMI
- Brightness: 1,000 cd/M²
- Contrast: 1,500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
This 7" TFT has a built-in MCU and offers a simple upgrade path from mono graphic displays to full colour TFTs.
- Resolution: 800 x 480
- Interface: MCU
- Brightness: 450 cd/M²
- Contrast: 500:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
Our 7" integrated display solution features an IPS TFT panel and comes with its own HDMI board, meaning it doesn't need any additional setup to get it running.
- Resolution: 1024 x 600
- Interface: HDMI
- Brightness: 250 cd/M²
- Contrast: 800:1
- Backlight: 20K Hours
- Temperature: -20°C to 70°C
Find out more
Our 10.1" integrated display solution combines an IPS TFT panel and an HDMI board to deliver a plug & play display paired with an industrial backlight.
- Resolution: 1280 x 800
- Interface: HDMI
- Brightness: 500 cd/M²
- Contrast: 800:1
- Backlight: 50K Hours
- Temperature: -10°C to 60°C
Find out more
