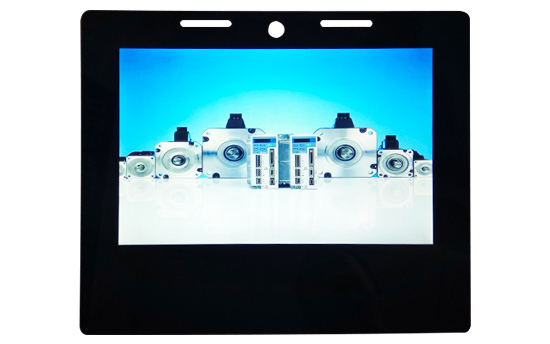

10.1" IPS TFT Display (IPS101B101A)
This WXGA 10.1" IPS TFT is part of our range of high performance TFTs.
With a 1280 x 800 px resolution and all round viewing angles, this display is highly adaptable. Narrow bezels on 3 sides enable up-to-the-edge mechanical design, giving an ultra-modern feel to your product.
This display has an LVDS interface suitable for noisy environments, and is easy to implement.
Touchscreen, optical enhancement and cover lens are available to assemble with this display, creating a superb user interface.
Display Features
- Size: > 10"
- Type: IPS TFT
Display Specs
| Part Number | IPS101B101A |
| Display Type | IPS TFT |
| Screen Size | 10.1" |
| Resolution | 1280 x 800 |
| Shape | Standard |
| Aspect Ratio | 8:5 |
| Viewing Angle | Free |
| Brightness | 320 cd/M² |
| Contrast Ratio | 800:1 |
| Interface | LVDS |
| Connection | ZIF |
| Operating Temperature Range | -10°C to 50°C |
| Dimensions (W x H x D) | 237 x 154 x 5.4 mm |
| Active Area (W x H) | 217 x 135.6 mm |
