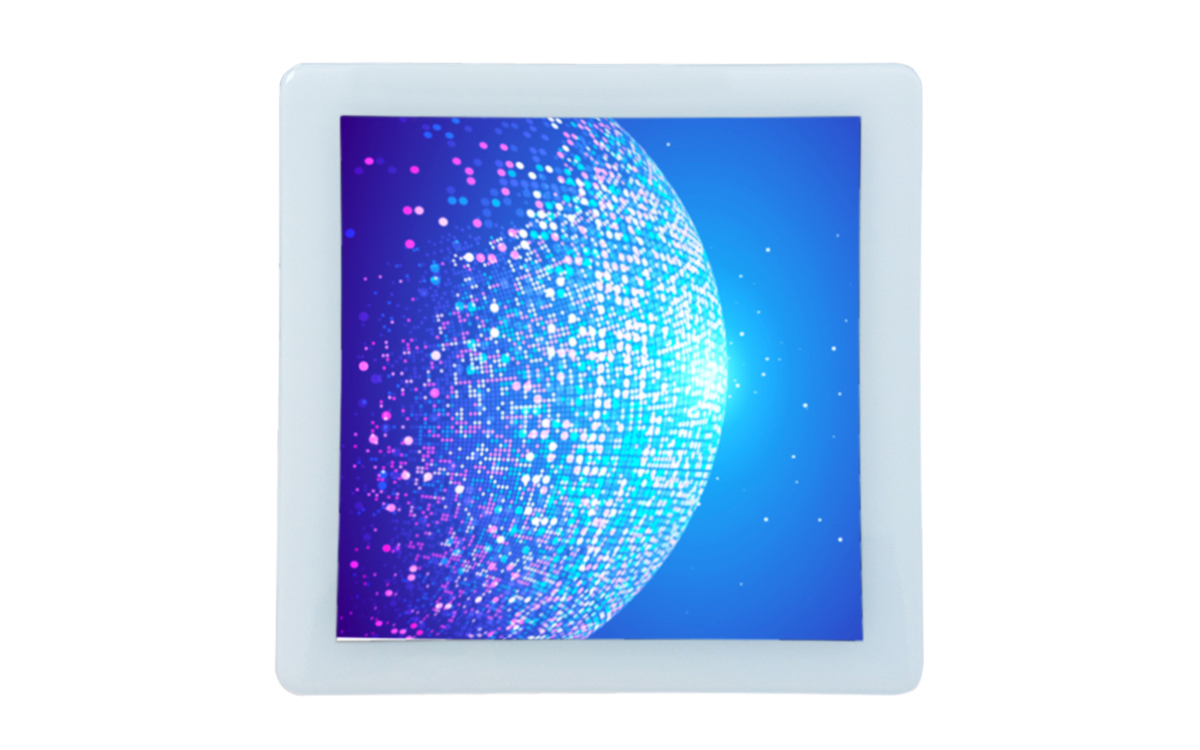

4" Square IPS TFT (IPS040A101A)
This 4" IPS TFT offers a 1:1 aspect ratio, making it ideally suited for applications such as IOT devices and smart home products
As with all our IPS TFT displays, this module features an excellent contrast ratio and all round viewing angles.
It can be further enhanced with a capacitive touchscreen or custom cover lens to create a truly unique product.
Display Features
- Size: < 5"
- Type: IPS TFT
- Shape: Square Display
Display Specs
| Part Number | IPS040A101A |
| Display Type | IPS TFT |
| Screen Size | 4" |
| Resolution | 480 x 480 |
| Shape | Square |
| Aspect Ratio | 1:1 |
| Viewing Angle | Free |
| Brightness | 300 cd/M² |
| Backlight Half-Life | 20K Hours |
| Contrast Ratio | 800:1 |
| Interface | RGB |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 76 x 78.2 x 2.3 mm |
| Active Area (W x H) | 71.9 x 70.1 mm |
