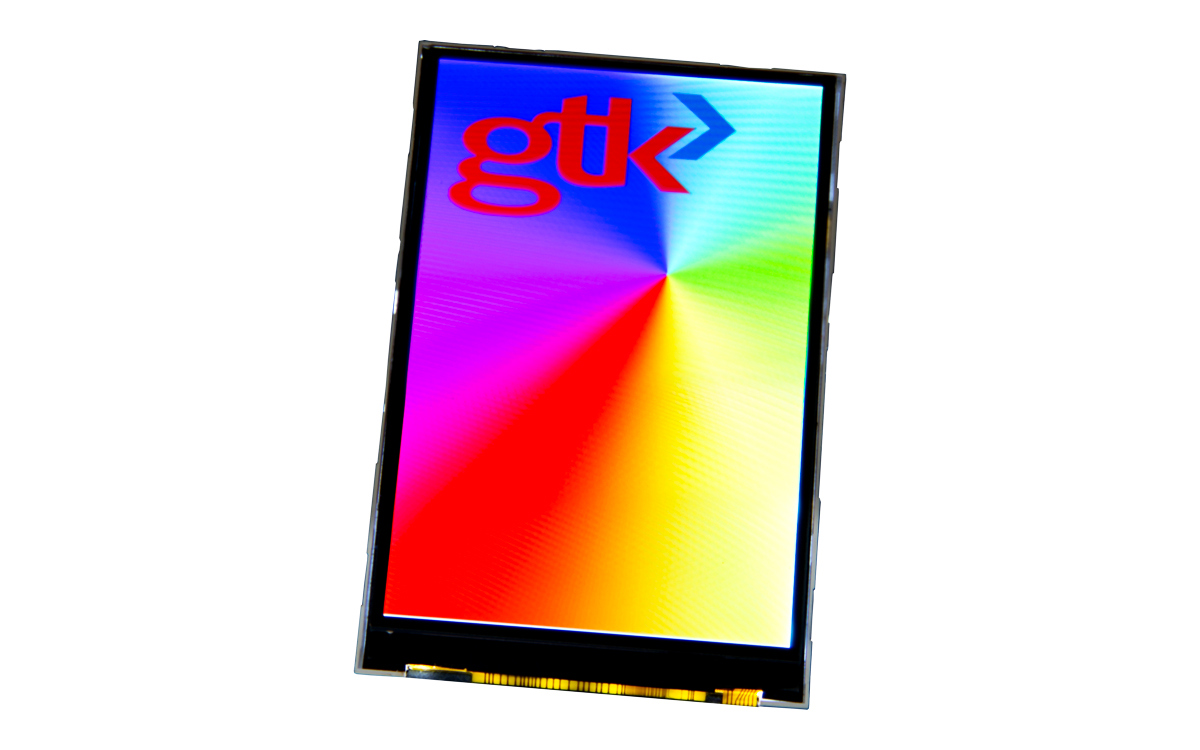

3.5" IPS TFT (IPS035A101A)
This 3.5" IPS HVGA display is ideal for general industrial applications that require good colour reproduction and fast response times.
It has a high contrast ratio and is available with a range of customisation options.
Display Features
- Type: IPS TFT
Display Specs
| Part Number | IPS035A101A |
| Display Type | IPS TFT |
| Screen Size | 3.5" |
| Resolution | 320 x 480 |
| Shape | Standard |
| Aspect Ratio | 2:3 |
| Viewing Angle | Free |
| Brightness | 250 cd/M² |
| Backlight Half-Life | 20K Hours |
| Contrast Ratio | 700:1 |
| Interface | MCU, RGB |
| Connection | ZIF |
| Operating Temperature Range | -20°C to 70°C |
| Dimensions (W x H x D) | 54.5 x 82.9 x 2.2 mm |
| Active Area (W x H) | 49 x 73.4 mm |
