Extended Operating Temperature Range Displays
This collection of TFT displays all feature an extended operating temperature range beyond that of standard displays.
- Will perform in temperatures ranging from -30°C to 85°C
- Range of displays includes IPS TFT panels and ultra-wide TFT panels
- Several displays feature enhanced backlights with brightness levels of 1000 cd/M²
- Suitable for applications that need consistent performance in extreme temperatures
Take a look at our range below or get in touch today to discuss your display requirements.
The TFT displays in this range all feature an extended operating temperature range of -30°C to 85°C. This is a 25°C increase over standard displays, which typically only operate in a temperature range of -20°C to 70°C.
The enhanced operating range of these displays means that they are ideal for applications that need to operate in more extreme temperatures without suffering from any loss in performance.
Our range includes several IPS displays, which offer all-round viewing angles and excellent contrast ratios, as well as a number of displays with high-powered backlights that provide excellent sunlight readability. We even have a couple of ultra-wide displays, which are well suited for automotive applications.

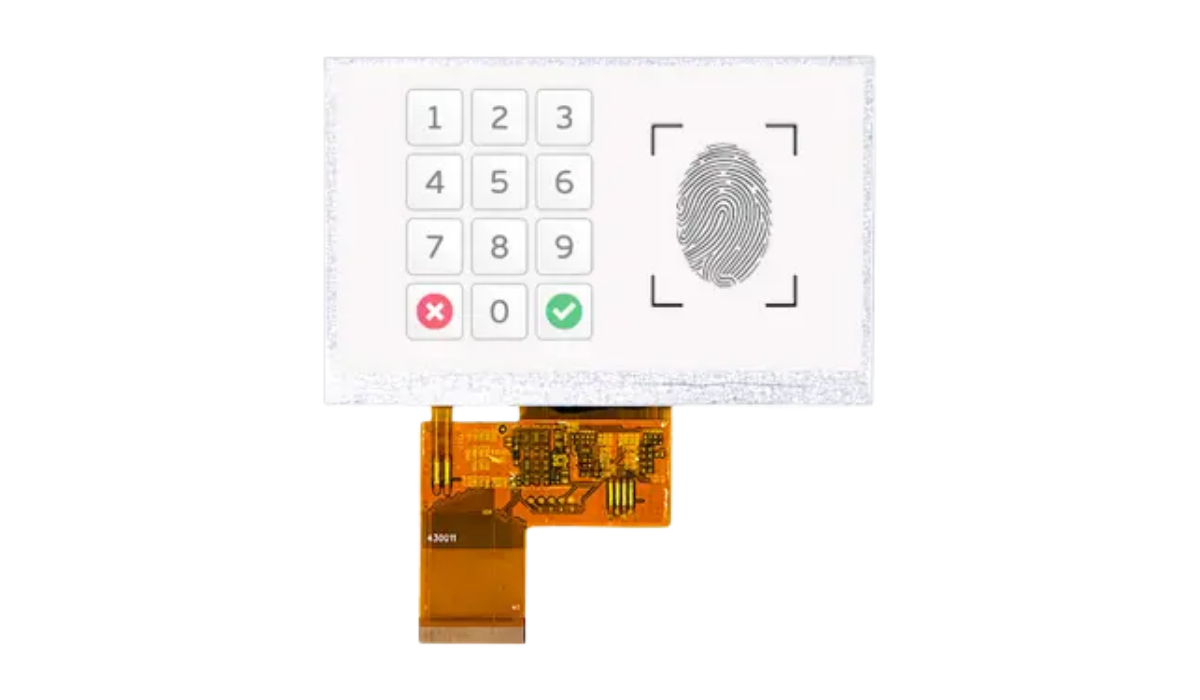

This 4.3" TFT is part of our range of high performance IPS displays. This gives it excellent response times and all-round viewing angles.
- Resolution: 480 x 272
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 800:1
- Backlight: 30K Hours
- Temperature: -30°C to 85°C
Find out more
This 5" IPS TFT has an extended operating temperature range of -30°C to 85°C, meaning it can perform in harsher environments than other displays.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 1,300:1
- Backlight: 30K Hours
- Temperature: -30°C to 85°C
Find out more
This 5.8" ultra-wide TFT features a 24-bit RGB interface and an aspect ratio of 2.5, and is polarised for a 12 o'clock viewing angle.
- Resolution: 800 x 320
- Interface: RGB
- Brightness: 500 cd/M²
- Contrast: 600:1
- Backlight: 25K Hours
- Temperature: -30°C to 85°C
Find out more

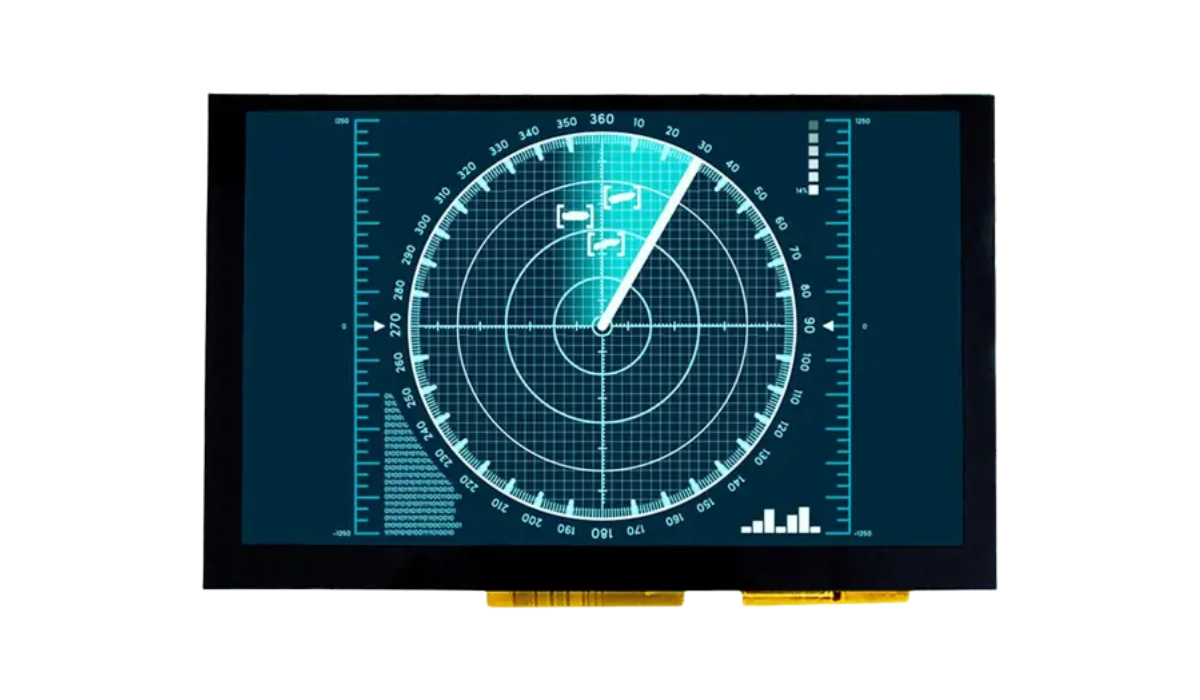

This 7" IPS TFT display offers all-round viewing angles and excellent response times, and features an extended operating temperature range of -30°C to 85°C.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 650 cd/M²
- Contrast: 800:1
- Backlight: 20K Hours
- Temperature: -30°C to 85°C
Find out more
This 7" TFT has an extended operating temperature range of -30°C to 85°C and features a high power backlight with an extended half-life of 30K hours.
- Resolution: 800 x 480
- Interface: RGB
- Brightness: 1,000 cd/M²
- Contrast: 700:1
- Backlight: 30K Hours
- Temperature: -30°C to 85°C
Find out more
This 9" letterbox display features all the benefits of IPS in addition to an extended operating temperature range of -30°C to 85°C.
- Resolution: 1280 x 240
- Interface: LVDS
- Brightness: 600 cd/M²
- Contrast: 1,000:1
- Backlight: 25K Hours
- Temperature: -30°C to 85°C
Find out more
This 10.1" IPS panel is perfect for a range of indoor and outdoor applications, with its industrial backlight and extended operating temperature range.
- Resolution: 1280 x 800
- Interface: LVDS
- Brightness: 1,000 cd/M²
- Contrast: 1,000:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more
This 10.25" letterbox TFT display features an HD resolution and an IPS panel, delivering all-round viewing angles, high contrast and excellent response times.
- Resolution: 1920 x 720
- Interface: LVDS
- Brightness: 600 cd/M²
- Contrast: 900:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more

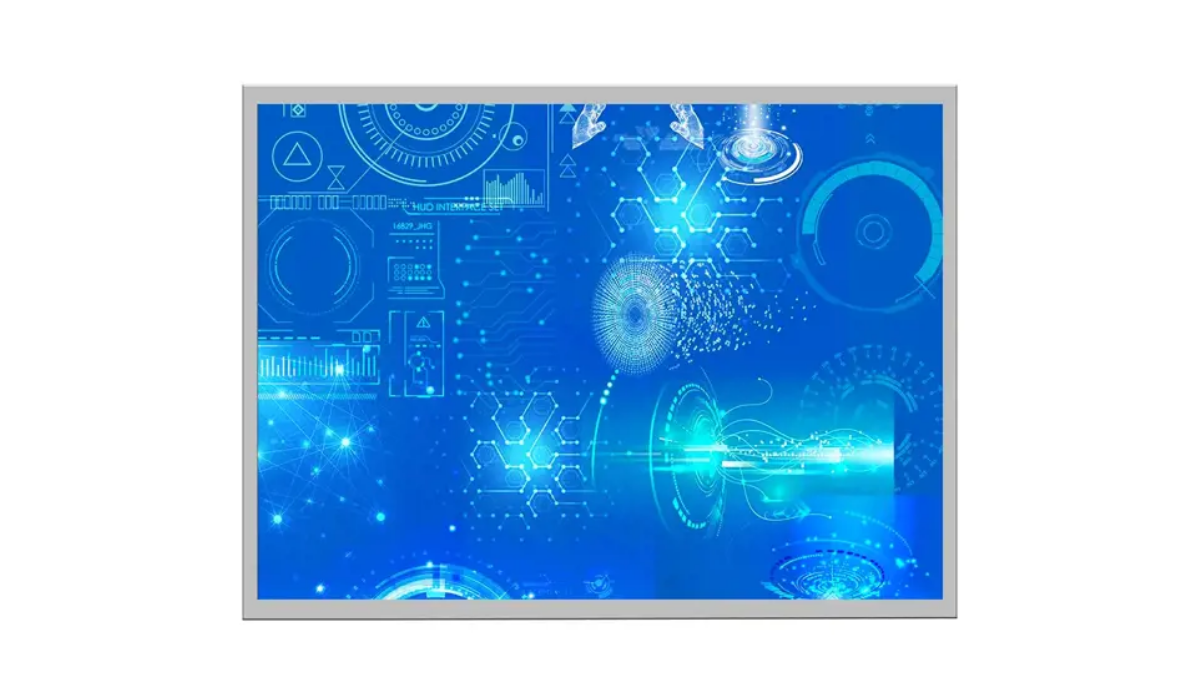

This 10.4" TFT display is fitted with an industrial backlight with a 50K hours half-life, and features an extended operating temperature range of -30°C to 85°C.
- Resolution: 800 x 600
- Interface: LVDS
- Brightness: 400 cd/M²
- Contrast: 700:1
- Backlight: 50K Hours
- Temperature: -30°C to 85°C
Find out more

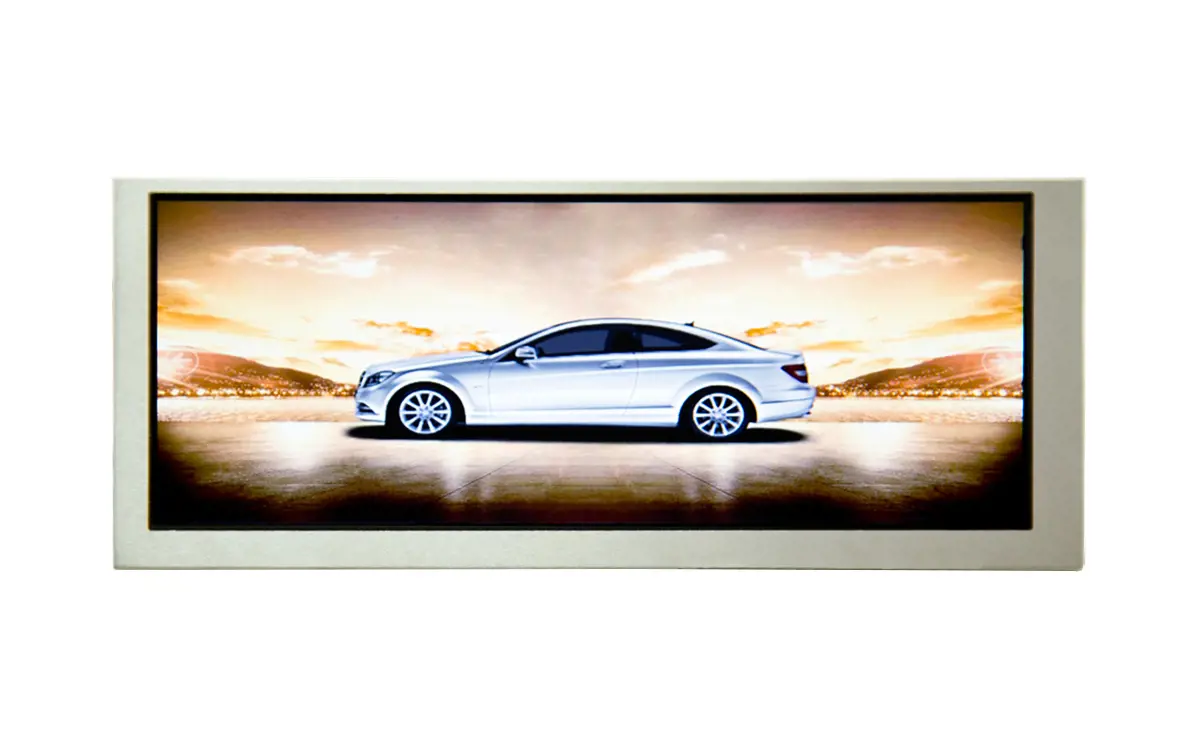

This 12.3" TFT display is the largest in our range of letterbox products and features a high resolution screen.
- Resolution: 1920 x 720
- Interface: LVDS
- Brightness: 1,000 cd/M²
- Contrast: 1,000:1
- Backlight: 70K Hours
- Temperature: -30°C to 85°C
Find out more
Like our smaller industrial TFTs, this 15" display is polarised for a 12 o'clock viewing angle and has a basic LVDS interface.
- Resolution: 1024 x 768
- Interface: LVDS
- Brightness: 450 cd/M²
- Contrast: 700:1
- Backlight: 70K Hours
- Temperature: -30°C to 80°C
Find out more
