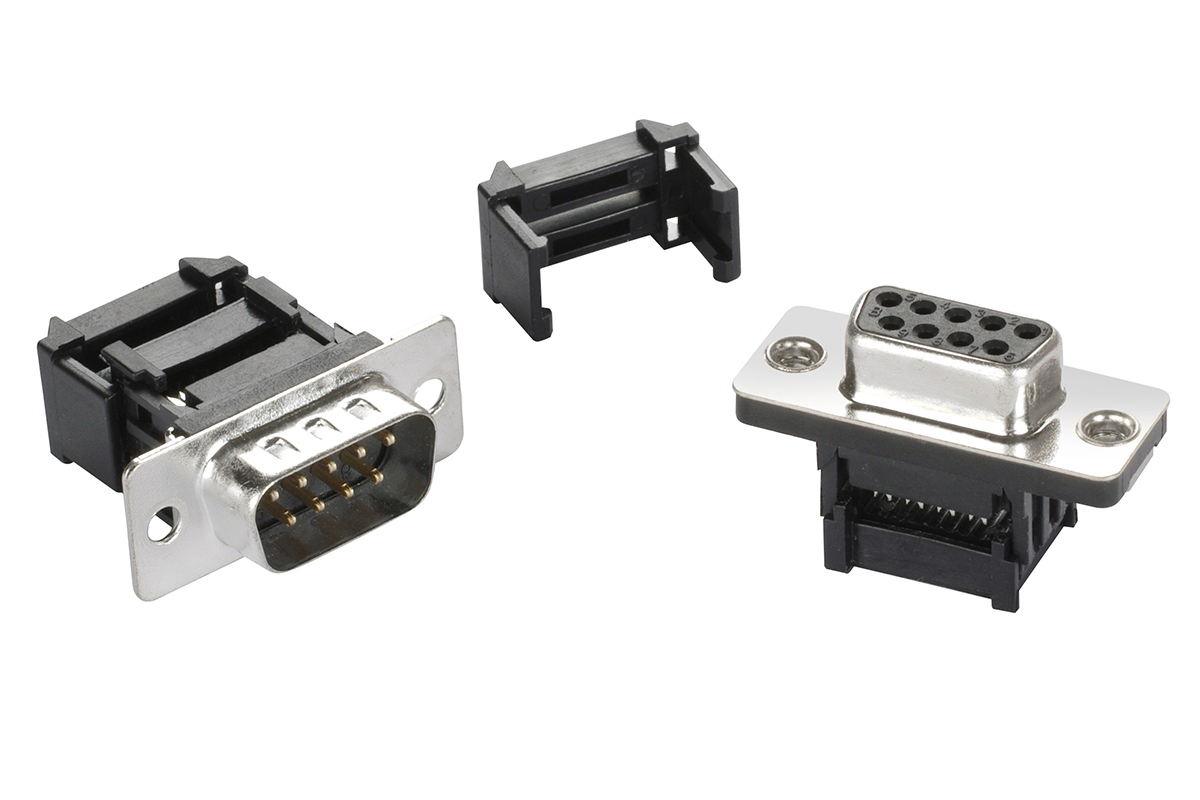

IDC D-Sub
IDC D-Sub connectors for termination to 1.27 mm pitch ribbon cable.
- Terminates to 1.27 mm pitch IDC ribbon cable
- Supplied with strain relief
- Front metal shell for EMI/RFI shielding
- Standard mounting holes or 4-40 UNC threaded inserts
- Black insulators as standard
- Replace 'xxx' with number of contacts
Get in touch today to discuss your IDC connector requirements
Product Details
| Part Number | No. of Contacts | Connector Type | Feature | Mounting Style | Drawing | Samples |
|---|---|---|---|---|---|---|
| FDxxxPM1-R | 9, 15, 25, 37 | Plug | Standard mounting holes | IDC cable | FDxxxPM1-R | request |
| FDxxxSM1-R | 9, 15, 25, 37 | Receptacle | Standard mounting holes | IDC cable | FDxxxSM1-R | request |
| FDxxxPM3-R | 9, 15, 25, 37 | Plug | 4-40UNC threaded inserts | IDC cable | FDxxxPM3-R | request |
| FDxxxSM3-R | 9, 15, 25, 37 | Receptacle | 4-40UNC threaded inserts | IDC cable | FDxxxSM3-R | request |
