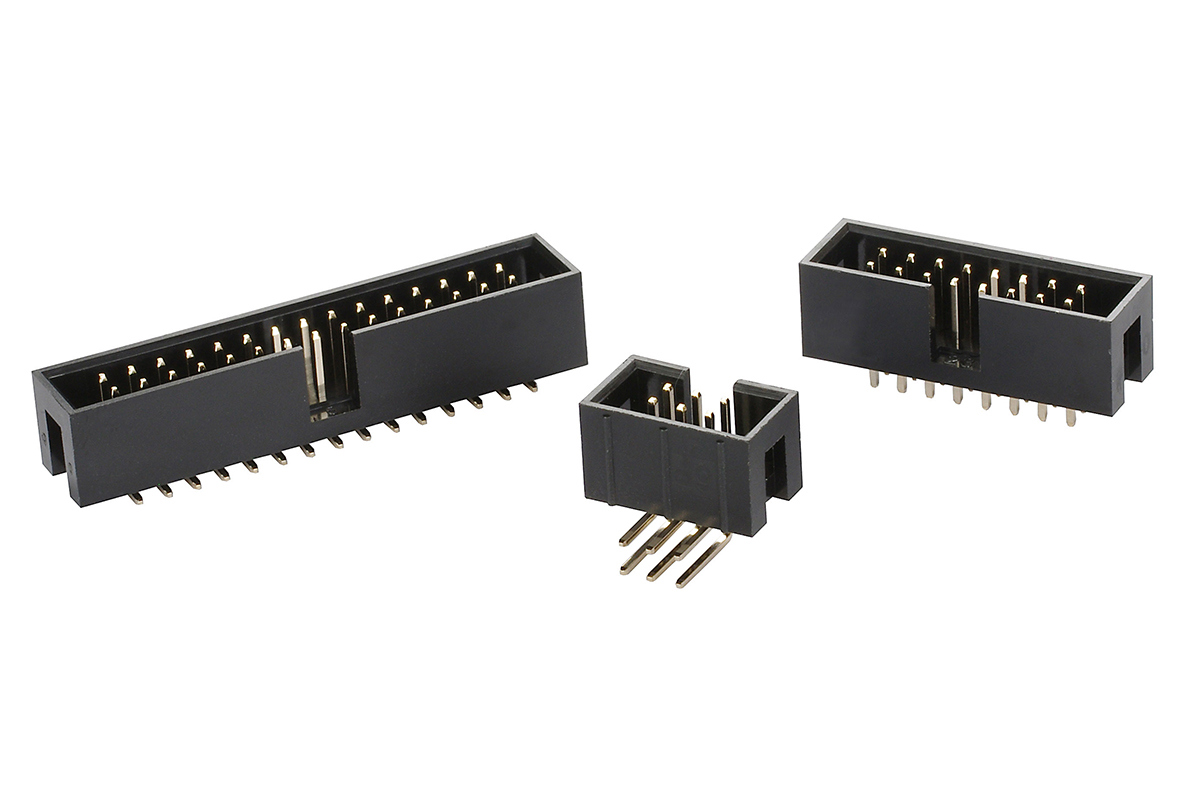

2.54 mm Box Headers

Low profile 2.54 mm pitch box headers.

  • Centre polarisation slot
  • Straight or right-angled headers
  • SMT versions available
  • Customisation options include variable contact lengths for 'First Make Last Break' (FMLB) applications
  • Replace 'xx' with number of contacts

Get in touch Get in touch today to discuss your IDC connector requirements

2.54 mm box headers

Product Details

Part NumberNo. of ContactsOrientationMounting StyleColourDrawingSamples
SCPxxGS3-R6-50VerticalThrough holeBlackSCPxxGS3-Rrequest
SCPxxGR3-R6-50Horizontal (R/A)Through holeBlackSCPxxGR3-Rrequest
SCPxxGS3-SMT-R6-64VerticalSMTBlackSCPxxGS3-SMT-Rrequest
