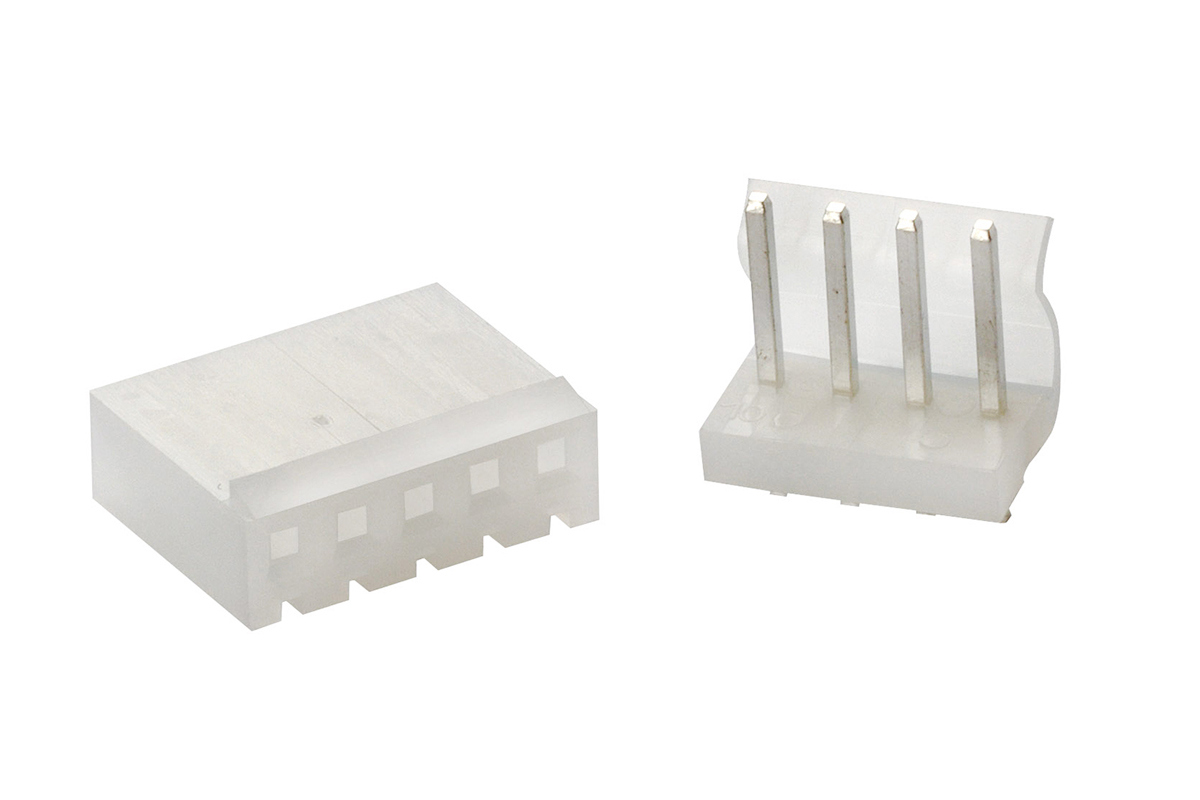

3.96 mm Friction Lock
Industry standard 3.96 mm pitch friction lock headers and mating cable connectors for higher current applications.
- 2-14 position
- 7 A current rating
- Polarised to prevent mis-mating
- Friction lock ramps reduce risk of accidental disconnection
- Selective pin loading available on request
- Fully interchangeable and compatible with industry standard equivalents
- Replace 'xx' with number of contacts
Get in touch today to discuss your wire-to-board requirements
Product Details
| Part Number | Connector Type | No. of Contacts | No. of Rows | Orientation | Mounting Style | Contact Plating | Wire Size | Drawing | Samples |
|---|---|---|---|---|---|---|---|---|---|
| 2400-xx-ST-R | Header | 2-14 | Single | Vertical | Through hole | Tin | 2400-xx-ST-R | request | |
| 2400-xx-RT-R | Header | 2-14 | Single | Horizontal (R/A) | Through hole | Tin | placeholder | request | |
| 2410-xx-R | Crimp housing | 2-14 | Single | Crimp | 2410-xx-R | request | |||
| 2410T-R | Crimp contact | Crimp | Tin | 18-22 AWG | 2410T-R | request |
