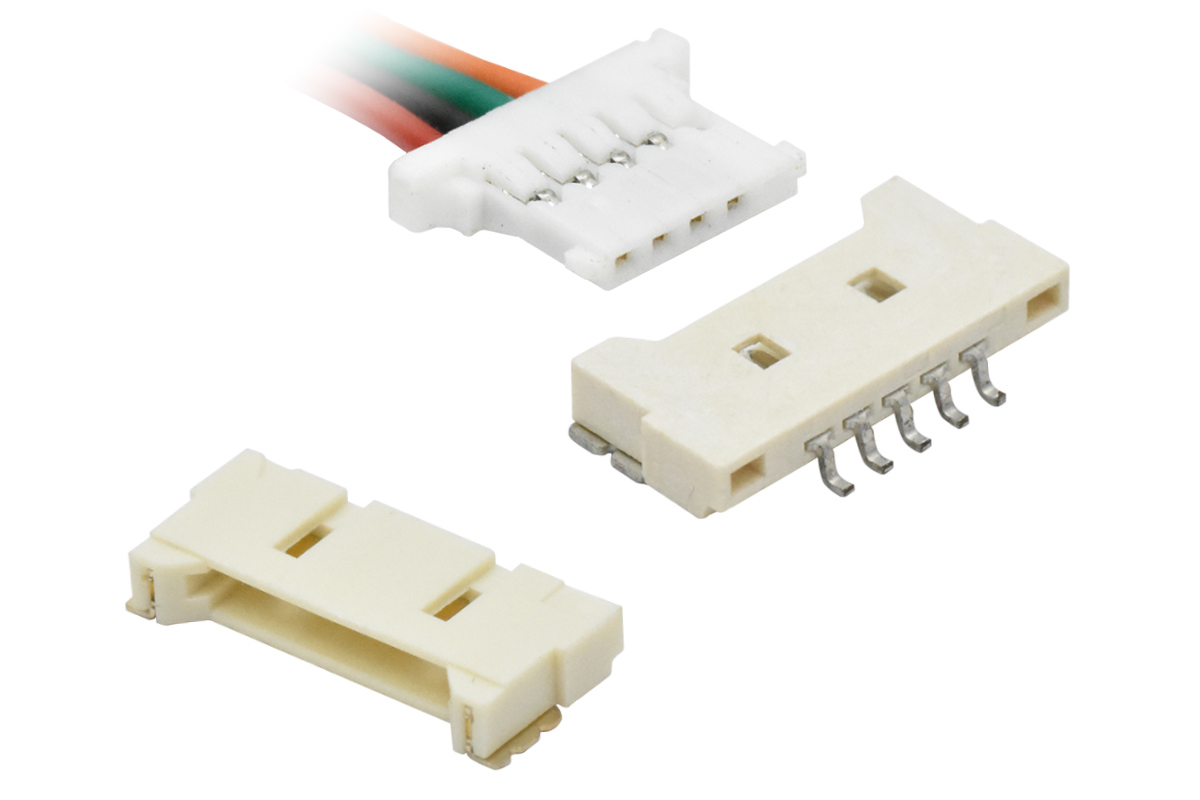

1.25 mm Low Profile Wire-To-Board
With its low-profile board mounted height, this 1.25 mm wire to board connector system is widely used for LED backlights in displays.
- 2-30 positions
- 2.1 mm board mounted height
- UL94V-0 rated housings
- 1.0 A current rating
- Tape & reel packaging suitable for auto pick & place
- Header also available with gold plating
- Replace 'xx' with number of contacts
- Custom discrete wire cable assemblies available in all volumes
Get in touch today to discuss your wire-to-board requirements
Product Details
| Part Number | Connector Type | No. of Contacts | Mounting Style | Orientation | Contact Plating | Wire Size | Drawing | Samples |
|---|---|---|---|---|---|---|---|---|
| WBPM-xxS-SMH1T-R | Header | 02-30 | SMT | Horizontal (R/A) | Tin | WBPM-xxS-SMH1T-R | request | |
| WBPM-xxS-CF3-R | Crimp housing | 02-30 | Crimp | WBPM-xxS-CF3-R | request | |||
| WBPM-CR-FTR-R | Crimp contact | Crimp | Tin | 28-32 AWG | WBPM-CR-FTR-R | request |
