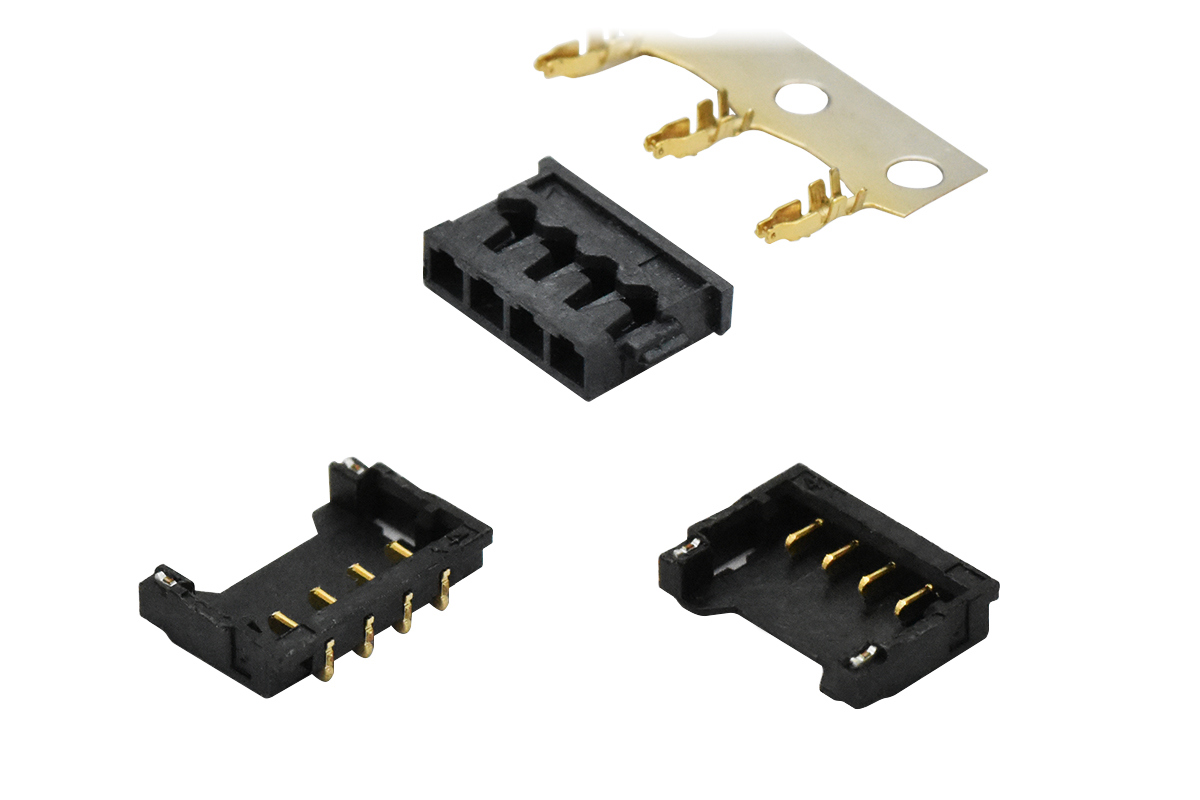

1.2 mm Wire-To-Board
Providing an ultra-low-profile wire to board connection, this range of connectors is perfect for applications with limited space.
- 1.55 mm mated height
- Rated to 1.5 A
- Polarised to prevent mis-mating
- SMT header suitable for auto pick-and-place
- Replace 'xx' with number of contacts
- Custom discrete wire cable assemblies available in all volumes
Get in touch today to discuss your wire-to-board requirements
Product Details
| Part Number | Connector Type | No. of Contacts | Mounting Style | Orientation | Contact Plating | Wire Size | Drawing | Samples |
|---|---|---|---|---|---|---|---|---|
| WB12-xxS-SMH1G-R | Header | 02-05 | SMT | Horizontal (R/A) | Gold | WB12-xxS-SMH1G-R | request | |
| WB12-xxS-CF3-R | Crimp housing | 02-05 | Crimp | WB12-xxS-CF3-R | request | |||
| WB12-CR-FG0R-R | Crimp contact | Crimp | Gold | 28-30 AWG | WB12-CR-FG0R-R | request |
