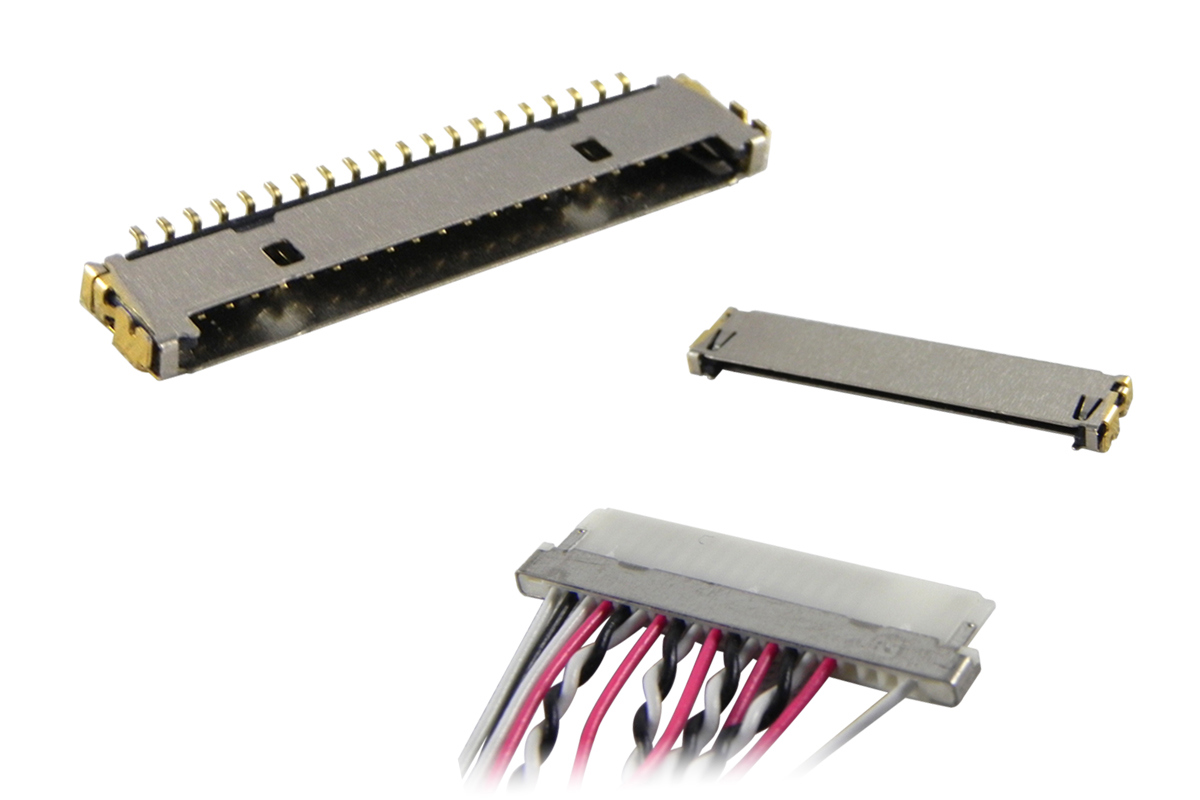

1.0 mm LVDS Connectors

High performance connectors for LVDS (Low Voltage Differential Signal) applications,

  • These products also support eDP (Embedded DisplayPort) protocols.
  • Widely used for LCD panel connections
  • Available in 4, 8, 20 & 30 contact positions
  • Low profile mated height of 1.6 mm (mid-mount option also available on request)
  • Mating cable assemblies also available from GTK
  • Replace 'xx' with number of contacts

Get in touch Get in touch today to discuss your IDC connector requirements

1.0 mm LVDS / eDP connectors

Product Details

Part NumberNo. of ContactsOrientationMounting StyleContact PlatingDrawingSamples
WB1.0H-xxSMH1G-R8, 14, 20, 30Horizontal (R/A)SMTGoldWB1.0H-xxSMH1G-Rrequest
