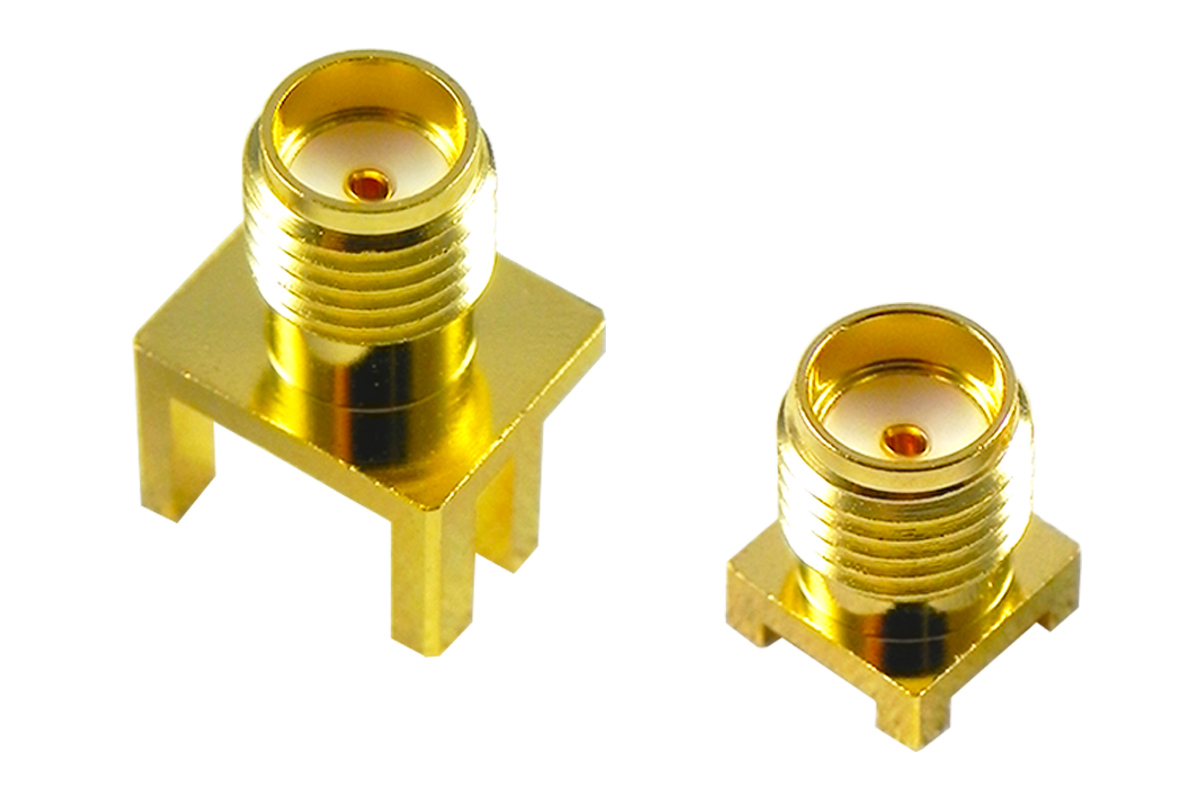

SMA
The SMA series is a versatile range providing excellent durability and mechanical strength.
- 26.5 GHz (semi-rigid cable) or 12.4 GHz (flexible cable) max frequency
- Screw coupling
- 50 Ω impedance (75 Ω available on request)
- Also available in reverse-polarity variants
Download our SMA spec sheet
Talk to us about our RF connectors
Product Details
| Part Number | Connector Type | Impedance | Mounting Style | Orientation | Drawing | Samples |
|---|---|---|---|---|---|---|
| SMA-J1T-GG25-R | Jack | 50 ohm | Through hole | Horizontal (R/A) | SMA-J1T-GG25-R | request |
| SMA-J2T-GG25-R | Jack | 50 ohm | Through hole | Vertical | SMA-J2T-GG25-R | request |
| SMA-J2S-GG25-R | Jack | 50 ohm | SMT | Vertical | SMA-J2S-GG25-R | request |
| SMA-J1E-GG25-R | Jack | 50 ohm | Through hole | End-launch | SMA-J1E-GG25-R | request |
| SMA-P2S-50-R | Jack | 50 ohm | Panel mount | Vertical | SMA-P2S-50-R | request |
