IPEX
The IPEX-style RF series provides a maximum mated height of under 2.5 mm, making it ideal for application where size is a critical factor.
It is most commonly used in wireless communications devices.
- 6 GHz maximum frequency
- Snap fit coupling
- 50 Ω impedance
- Maximum mated height of under 2.5 mm

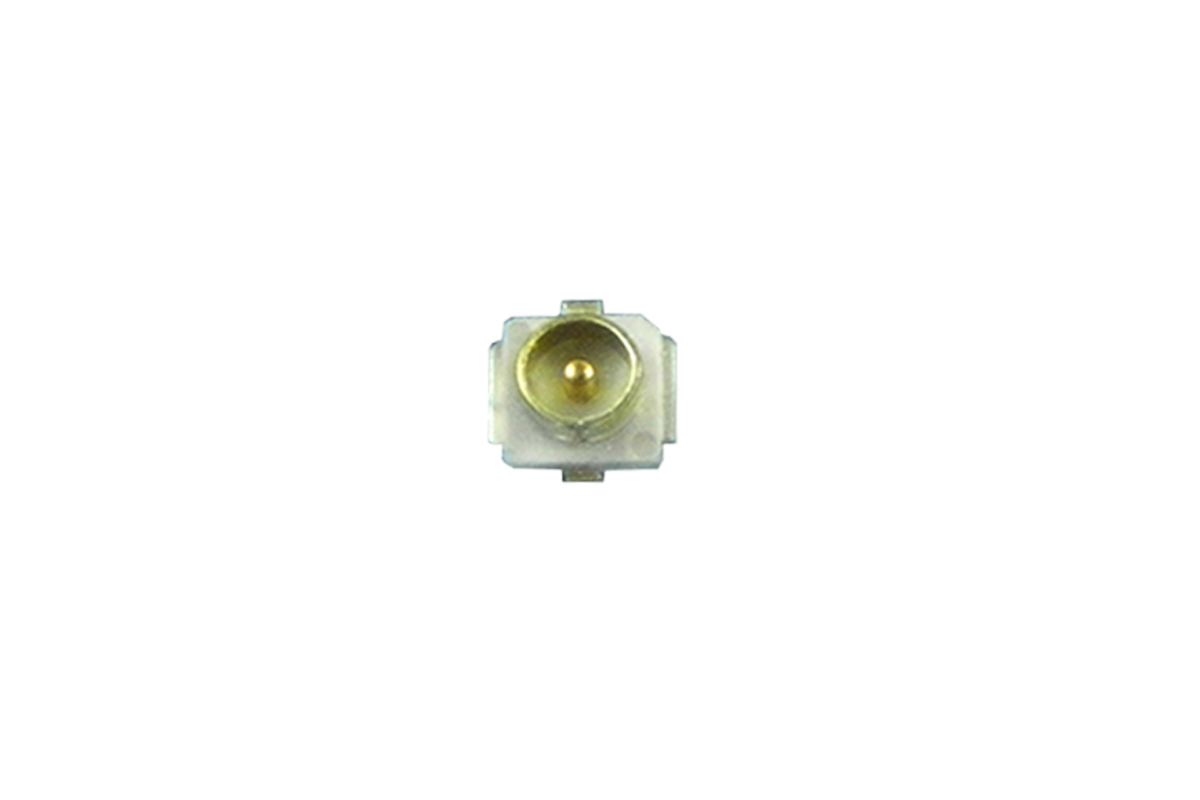

![Ultraminiature RF connectors](https://cdn.cms42.com/gtk2022/product-categories/connectors/rf/_webp/rf-ultra-ipex/original.webp)
Product Details
Part Number | Connector Type | Impedance | Mounting Style | Orientation | Drawing | Samples |
---|---|---|---|---|---|---|
USC-R-SMT-L-R | Jack | 50 ohm | SMT | Vertical | USC-R-SMT-L-R | request |
