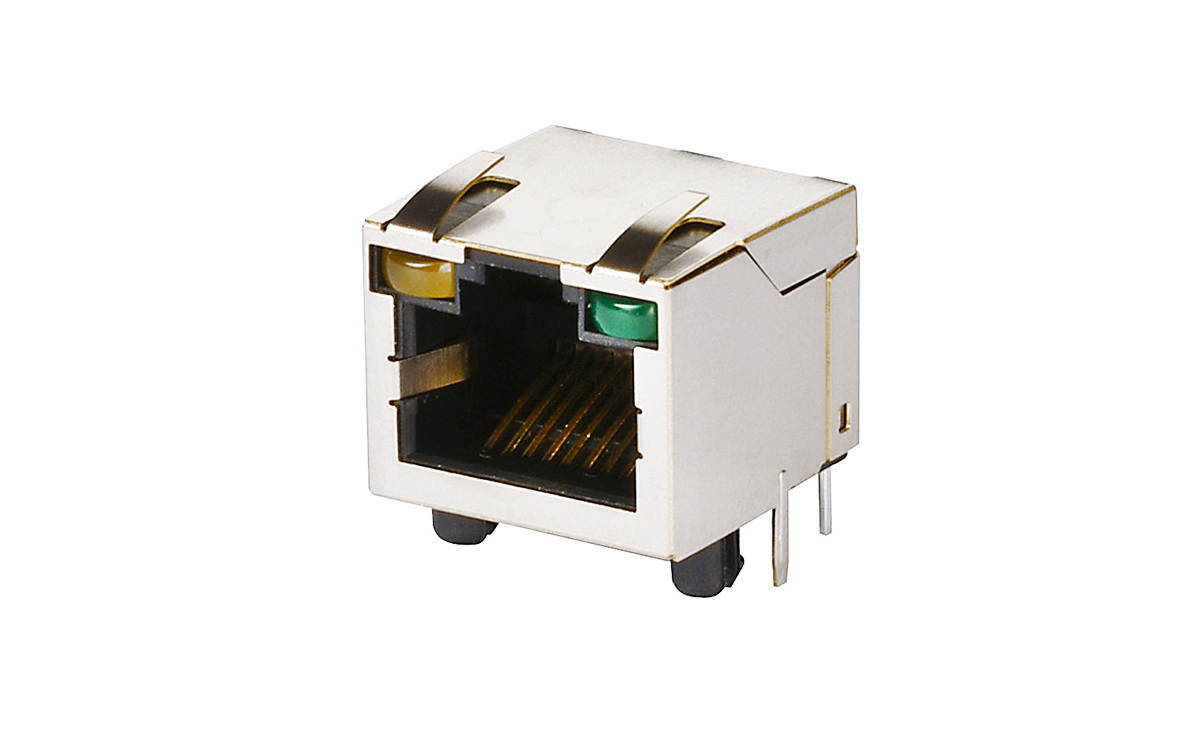

Single-Port, Side Entry, Shielded, LED RJ Connectors
Shielded RJ45 LED jacks; listed here are our most popular LED combinations, but alternative combinations are also available.
- Single and bi-colour LED options
- Standard or inverted latch orientation
- SMT or through-hole mounting
- Low profile, mid-mount connector available
Need help with RJ connectors? Speak to us today
Product Details
| Part Number | Mounting Style | Orientation | Latch Orientation | LED Option (Left / Right) | Feature | Drawing | Samples |
|---|---|---|---|---|---|---|---|
| MTCL-18811SB-R | Through hole | Horizontal (R/A) | Up | Yellow / Green | Top shield tabs | MTCL-18811SB-R | request |
| MTCL-18811SBS-R | Through hole | Horizontal (R/A) | Up | Yellow / Green | Full shield tabs | MTCL-18811SBS-R | request |
| MTCL-18831ST-R | Through hole | Horizontal (R/A) | Up | Green / Yellow | Top shield tabs | MTCL-18831ST-R | request |
| MTCL-18831SB-D-R | Through hole | Horizontal (R/A) | Down | Green / Yellow | Full shield tabs | MTCL-18831SB-D-R | request |
| MTCL-18811SB-SMR | SMT | Horizontal (R/A) | Up | Yellow / Green | Full shield tabs | MTCL-18811SB-SMR | request |
| MTCL-1E8831B-R | SMT | Horizontal (R/A) | Down | Yellow/Green | Mid-mount, full shield tabs | MTCL-1E8831B-R | request |
