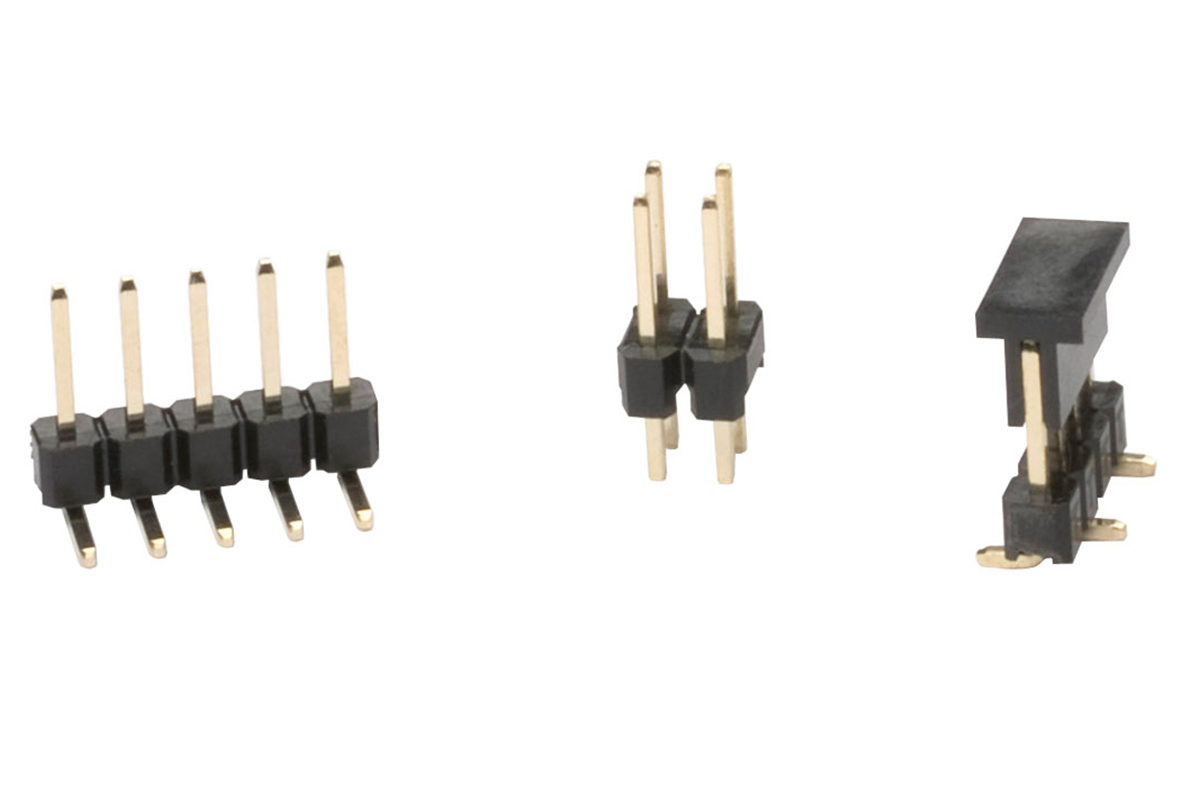

2.54 mm Pin Headers
A versatile and popular range of 2.54 mm pitch, easily modified to custom pin lengths.
- Single or dual row headers, easily cut to size
- Vertical or right angled
- Through hole and SMT headers available
- Available with modified pin lengths on request
- Supplied with gold plating as standard; tin plating available on request
- Replace 'xx' with number of contacts
Get in touch today to discuss your pin header requirements
Product Details
| Part Number | No. of Contacts | No. of Rows | Orientation | Mounting Style | Contact Plating | Drawing | Samples |
|---|---|---|---|---|---|---|---|
| PHSSxxG1-R | 2-40 | Single | Vertical | Through hole | Gold | PHSSxxG1-R | request |
| PHDSxxG1-R | 4-80 | Dual | Vertical | Through hole | Gold | PHDSxxG1-R | request |
| PHSRxxG1-R | 2-40 | Single | Horizontal (R/A) | Through hole | Gold | PHSRxxG1-R | request |
| PHDRxxG1-R | 4-80 | Dual | Horizontal (R/A) | Through hole | Gold | PHSRxxG1-R | request |
| PHSSxxG7-R | 2-40 | Single | Vertical | SMT | Gold | request | |
| PHDSxxG7-R | 4-80 | Dual | Vertical | SMT | Gold | PHDSxxG7-R | request |
