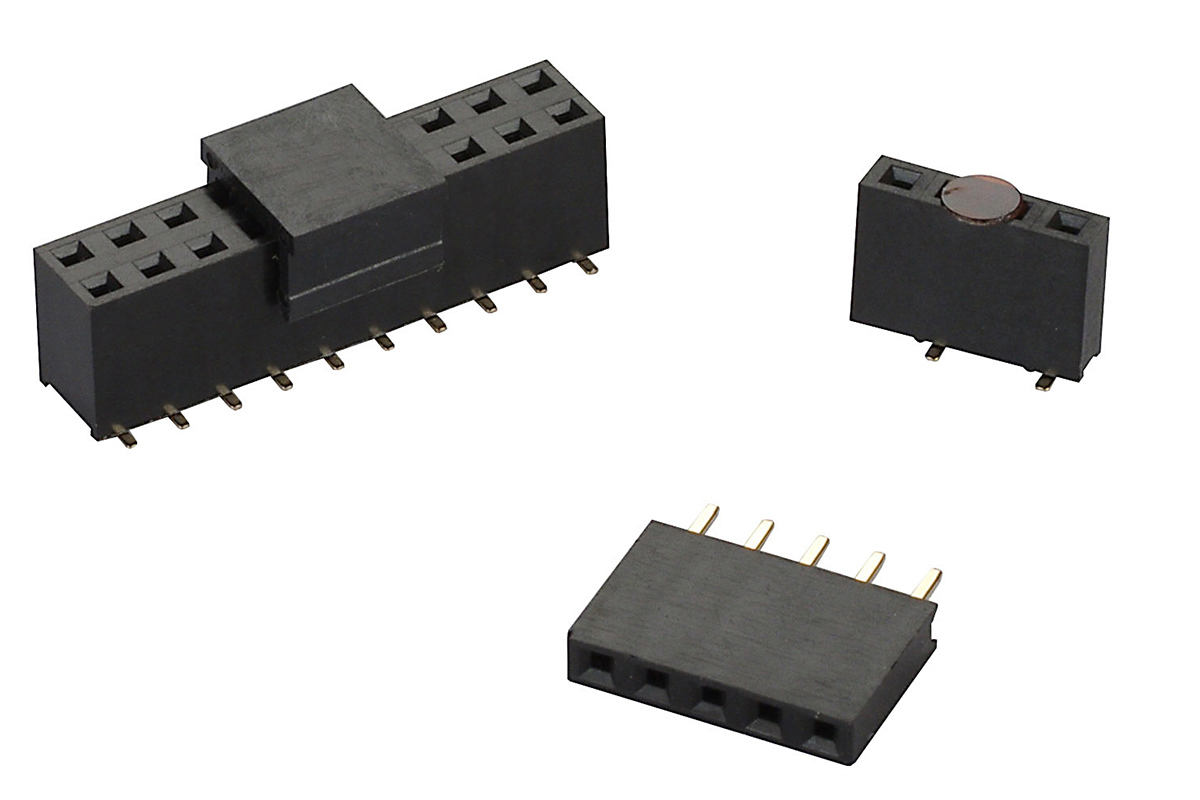

2.54 mm PCB Receptacles
2.54 mm PCB receptacles with various housing heights and contact styles for top- and dual-entry applications.
- Single or dual row receptacles
- Various contact styles for top- or dual-entry applications
- Standard and low-profile housing height options
- Elevated receptacles available on request
- SMT and through hole mounting options
- Replace 'xx' with number of contacts
Get in touch today to discuss your PCB socket requirements
Product Details
| Part Number | No. of Contacts | No. of Rows | Orientation | Mounting Style | Height Above PCB | Contact Style | Contact Plating | Drawing | Samples |
|---|---|---|---|---|---|---|---|---|---|
| FHSSxxG1-R | 2-40 | Single | Vertical | Through hole | 8.5 mm | Top entry | Gold | FHSSxxG1-R | request |
| FHDSxxG1-R | 4-80 | Dual | Vertical | Through hole | 8.5 mm | Top entry | Gold | FHSSxxG1-R | request |
| FHSRxxG1-R | 2-40 | Single | Horizontal (R/A) | Through hole | 8.5 mm | Top entry | Gold | FHSSxxG1-R | request |
| FHDRxxG1-R | 4-80 | Dual | Horizontal (R/A) | Through hole | 8.5 mm | Top entry | Gold | FHSSxxG1-R | request |
| FHDSxxG1D-5.0-R | 4-80 | Dual | Vertical | Through hole | 5.0 mm | Dual entry | Gold | FHDSxxG1D-5.0-R | request |
| FHSSxxG7-R | 2-40 | Single | Vertical | SMT | 7.65 mm | Top entry | Gold | - | request |
| FHDSxxG7D-5.0-R | 4-80 | Dual | Vertical | SMT | 5.0 mm | Dual entry | Gold | FHDSxxG7D-5.0-R | request |
