0.8 mm 'Microstak'

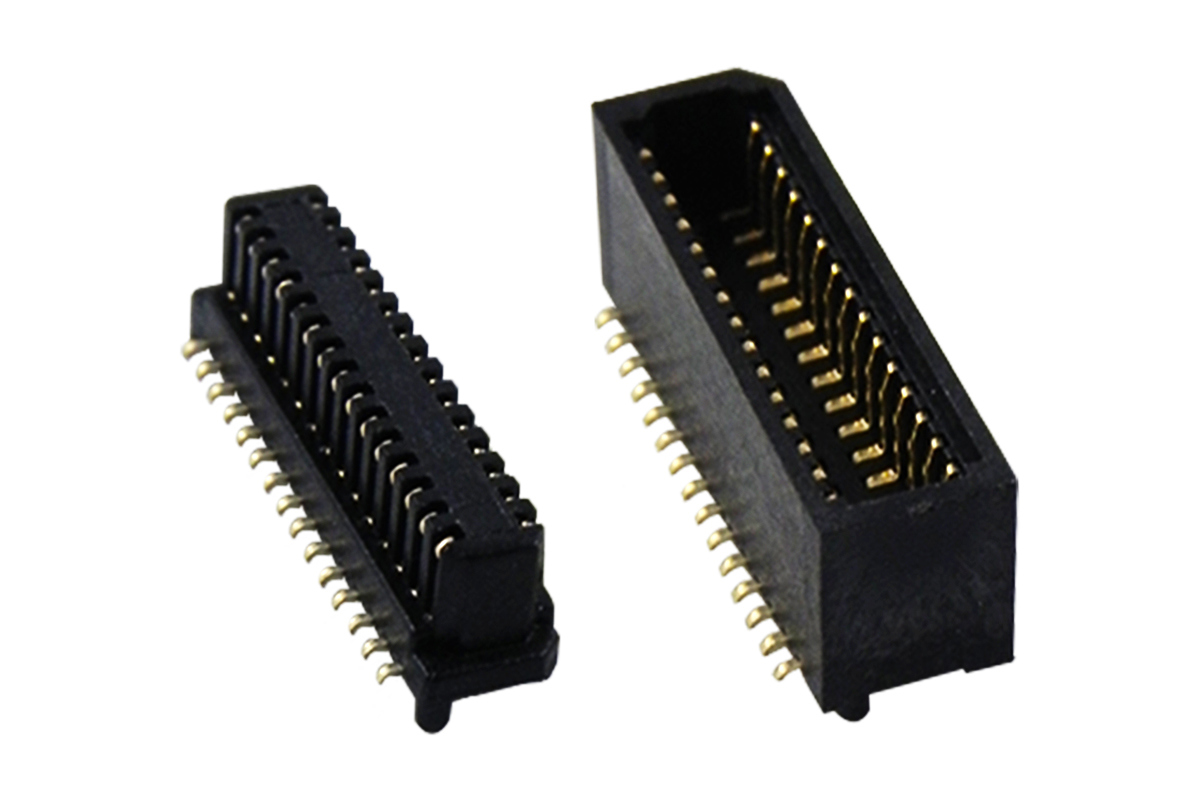

A single male connector used with varying female connectors to give flexible stacking heights for parallel PCBs.
- Mated height options of 4.6 mm, 6.0 mm and 7.0 mm
- 10 (2x5) to 100 (2x50) contact positions
- Locating posts allow for accurate PCB positioning
- Integral polarisation to prevent mis-mating
- Supplied on tape & reel as standard
- Replace 'xx' with total number of contacts
Get in touch to discuss your fine-pitch board-to-board requirements
Product Details
| Part Number | No. of Contacts | Connector Type | PCB Stack Height | Orientation | Mounting Style | Feature | Contact Plating | Drawing | Samples |
|---|---|---|---|---|---|---|---|---|---|
| BB80xxMG355-R | 10-100 | Plug | Varies with receptacle choice | Vertical | SMT | Locating posts | Gold | BB80xxMG355-R | request |
| BB80xxFG355-R | 10-100 | Receptacle | 4.6 mm | Vertical | SMT | Locating posts | Gold | BB80xxFG355-R | request |
| BB80xxFG505-R | 10-100 | Receptacle | 6.0 mm | Vertical | SMT | Locating posts | Gold | bb80xxfg505-tr-r | request |
| BB80xxFG605-R | 10-100 | Receptacle | 7.0 mm | Vertical | SMT | Locating posts | Gold | bb80xxfg605-tr-r | request |
