SMP
Similar in size to MMCX connectors and with a frequency range of DC to 40 Ghz.
- Ideal for cable-end and board-to-board connections.
- Plugs offer differing retention force options to connect PCBs via a bullet adaptor, which accommodates radial and axial misalignment.
- Up to 40 GHz (semi-rigid cable with straight connector) or 12 GHz (in board-to-board applications) max frequency
- Snap-fit / push-fit coupling for efficient installation
- Three levels of retention on male connectors; full detent, limited detent and smooth bore
- Suitable for board-to-board applications
- 50 Ω impedance
- SMP cable assemblies also available from GTK
Download our SMP spec sheet
Talk to us about our RF connectors

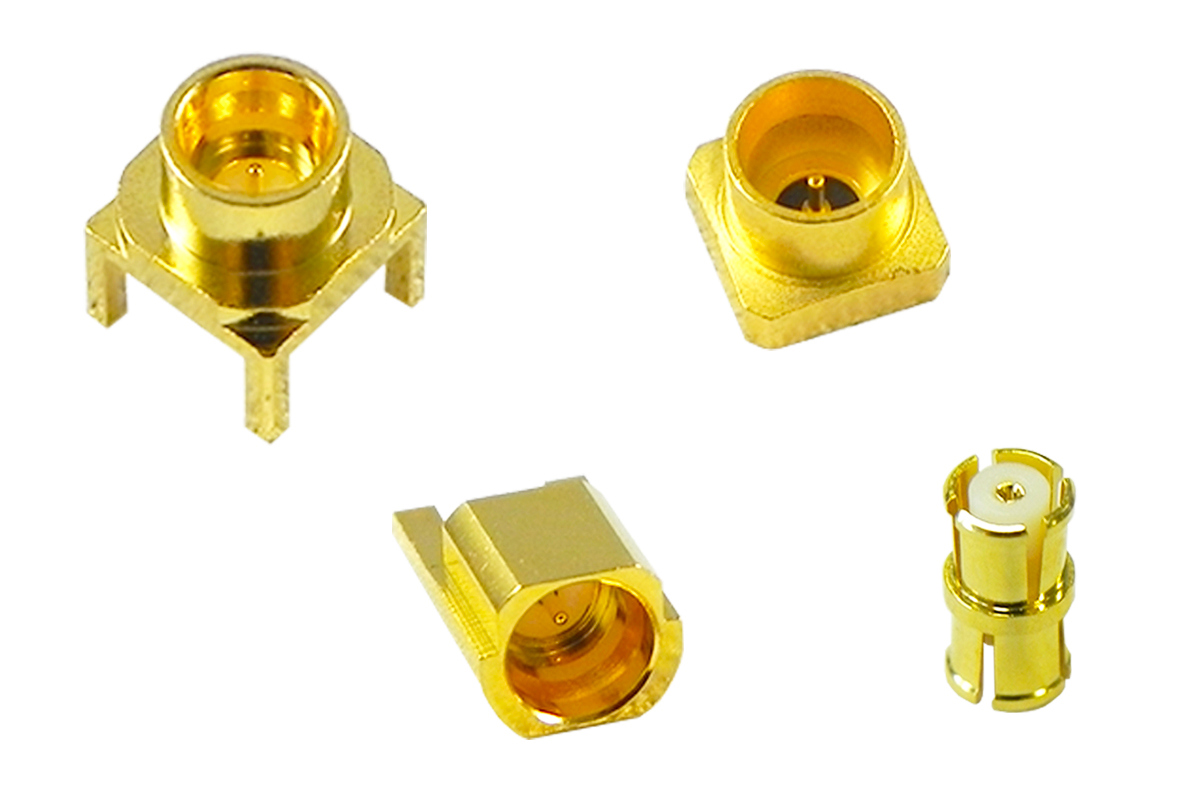

Product Details
| Part Number | Connector Type | Impedance | Mounting Style | Orientation | Drawing | Samples |
|---|---|---|---|---|---|---|
| SMP-MD2T-GG25-R | Plug | 50 ohm | Through hole | Vertical | SMP-MD2T-GG25-R | request |
| SMP-MP2S-GG25-R | Plug | 50 ohm | SMT | Vertical | SMP-MP2S-GG25-R | request |
| SMP-MDES-GG25-R | Plug | 50 ohm | SMT | End-launch | SMP-MDES-GG25-R | request |
| SMP-AFF1-GG25-R | In-series adaptor | 50 ohm | N/a | Vertical | SMP-AFF1-GG25-R | request |
